Section 82 (Pedestrian Protection System)
>>
Schematic Wiring Diagrams
>>
Pedestrian Protection Wiring Schematics
>>

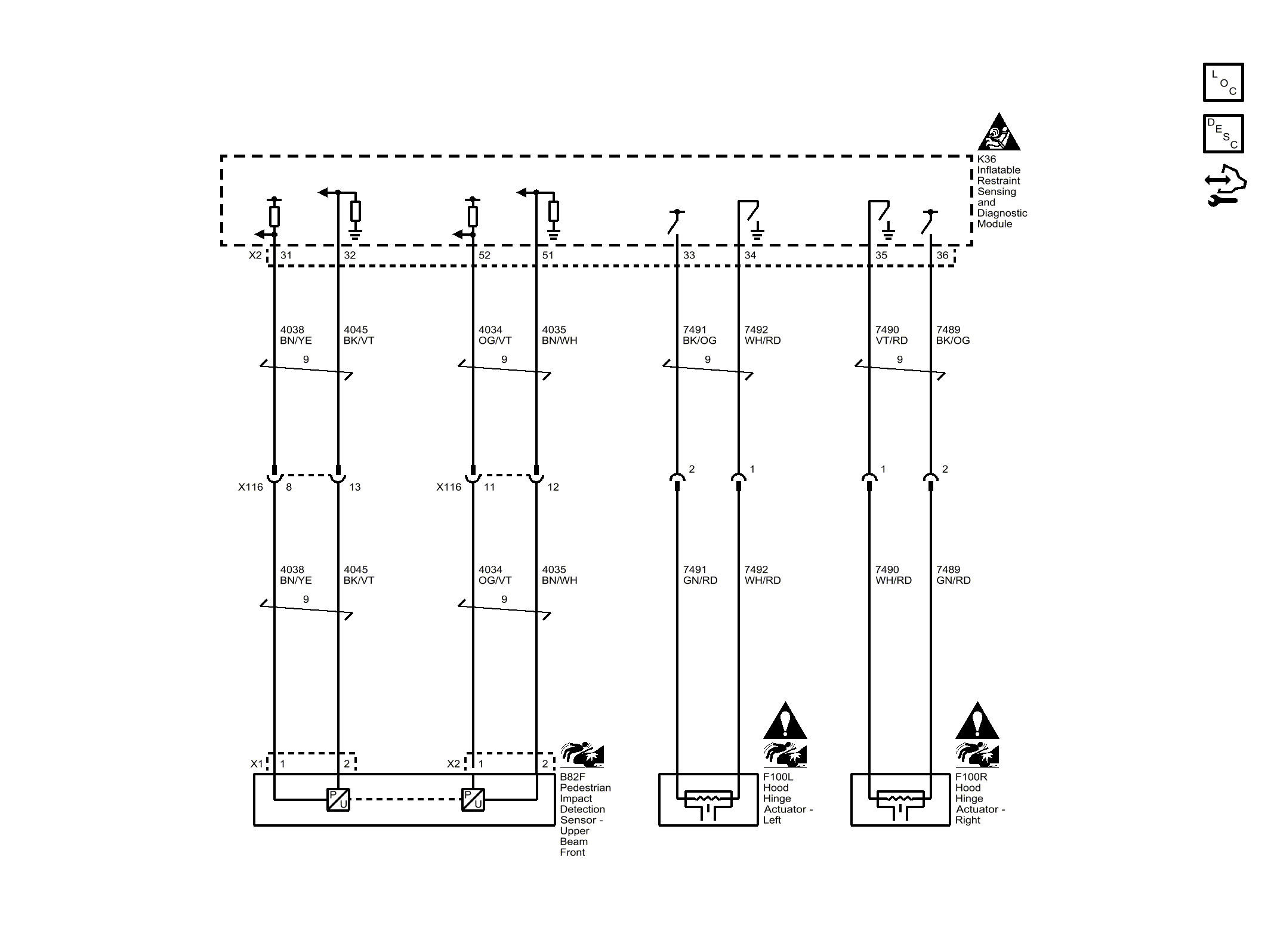

Pedestrian Impact Detection System (B3T)
Pedestrian Impact Detection System (B3T)
WARNING:
This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
