Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

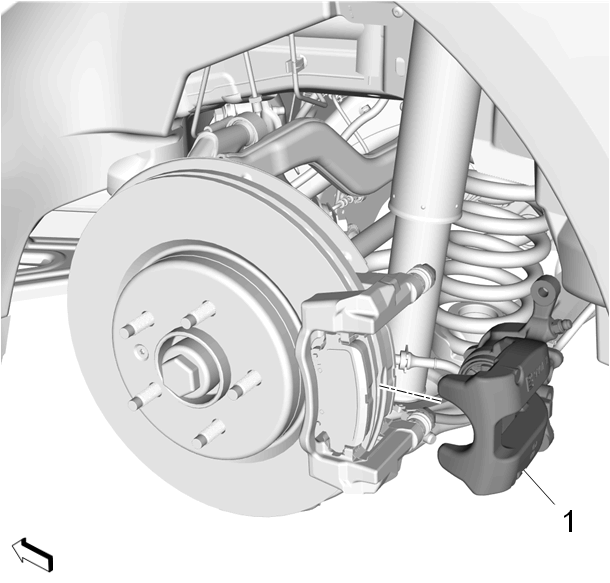

Rear Brake Caliper(1) - Install
- CAUTION:NOTE:
- Do NOT use any air tools to remove or install the brake caliper guide pin bolts. Use hand tools ONLY.

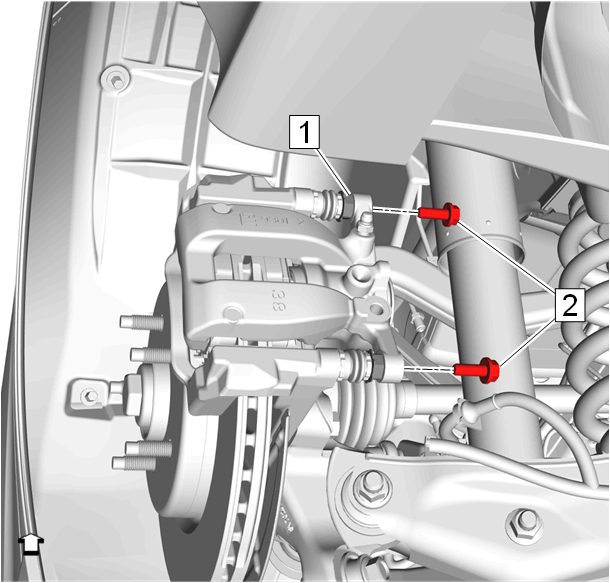

- Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing the caliper guide pin bolt.(1)Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.
Brake Caliper Guide Pin Bolt(2) - Install and tighten 35 N.m (26 lb ft) [2x]
Remove the cap from the brake hose fitting.

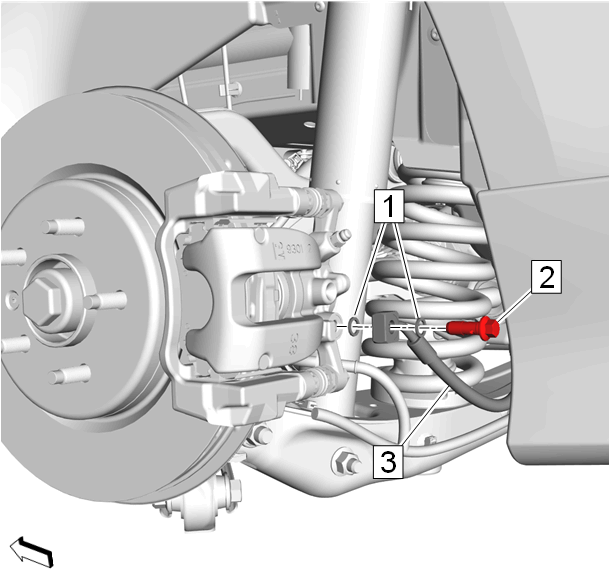

- Rear Brake Hose Washer(1) - Install[2x] - Use NEW seals.
- Rear Brake Hose(3) - Install
- Brake Hose Fitting Bolt (2) - Install and tighten 40 N.m (30 lb ft)
- Parking Brake Actuator Replacement (GNC)Parking Brake Actuator Replacement (GNQ) - Install
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)Hydraulic Brake System Bleeding (Manual)
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Repeat steps (9 - 10) until a firm brake pedal is obtained.
This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Tire and Wheel Removal and Installation - Install
