Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Thoroughly clean the disc brake pad retainer spring contact area and surfaces of the brake caliper bracket of any corrosion and debris.

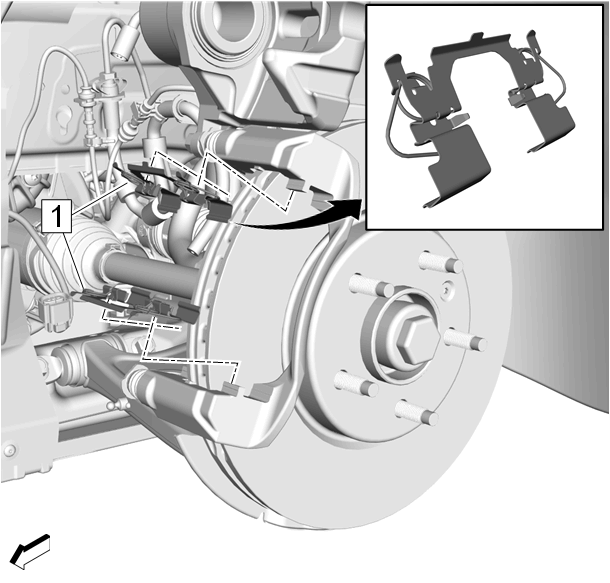

Front Disc Brake Pad Retaining Spring(1) - Install NEW[2x]

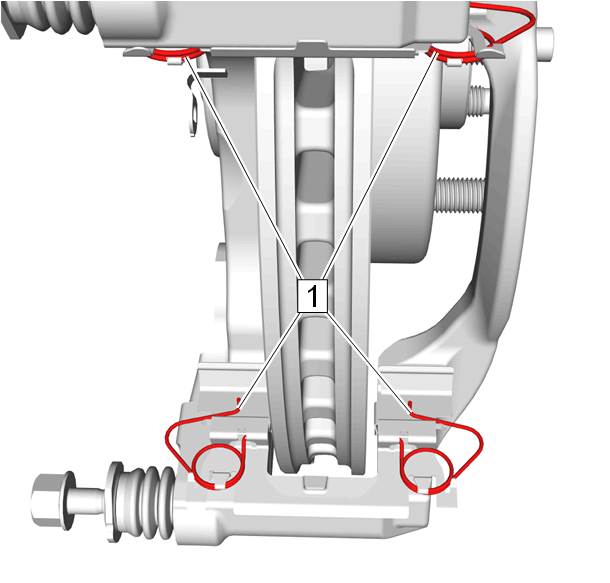

Retainer Spring(1) - Install NEW

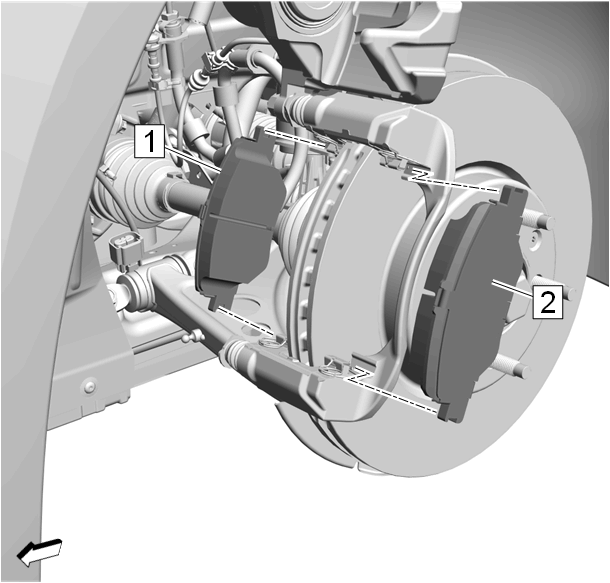

Front Disc Brake Inner Pad(1) - Install
- Front Disc Brake Outer Pad(2) - Install
Ensure the brake caliper guide pin seal is fully seated in the groove of the brake caliper guide pin and the guide pin slides freely in caliper bracket bore.
- Pivot the brake caliper to the installed position.
- CAUTION:

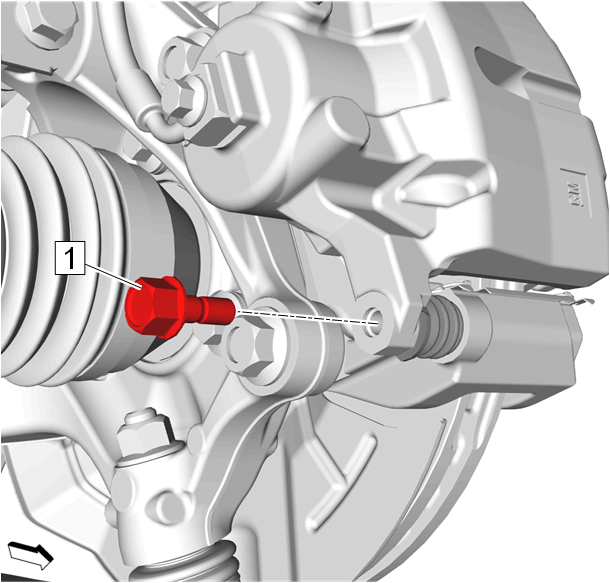

Brake Caliper Guide Pin Bolt(1)- Lower - Install and tighten 47 N.m (35 lb ft) [2x]
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Repeat steps (11 - 12)until a firm brake pedal is obtained.
This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
NOTE:
The lower brake caliper guide must seat (arrow) correctly in the brake caliper.
