Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
    • Re-cut the bolt threads.
    • Re-cut the threaded holes.
    • Thoroughly clean the residue from the bolt threads with denatured alcohol or equivalent and allow to dry.
    • Thoroughly clean the residue from the threaded holes with denatured alcohol or equivalent and allow to dry.
    • Apply thread lock agent to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers

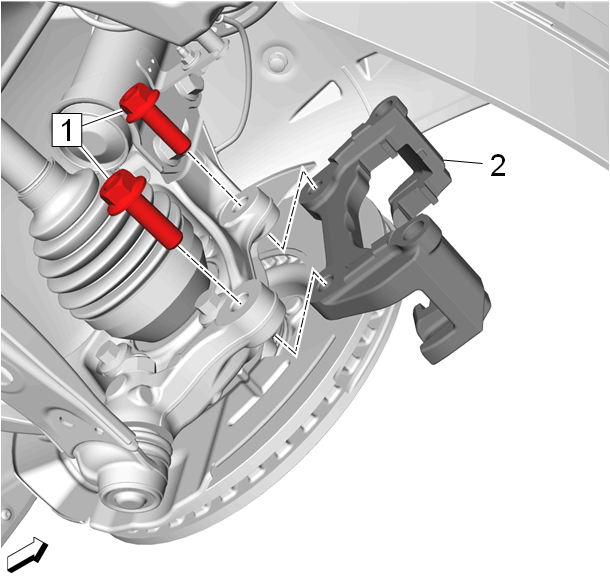

  2. GM4739748

    Front Brake Caliper Bracket(2) - Install

    3. CAUTION:

    Fastener Caution

  3. Front Brake Caliper Bracket Bolt(1) - Install and tighten[2x]
    1. First Pass: 150 N.m (111 lb ft)
    2. Final Pass: 15 - 30 degrees - Use the special tool: EN-45059  meter

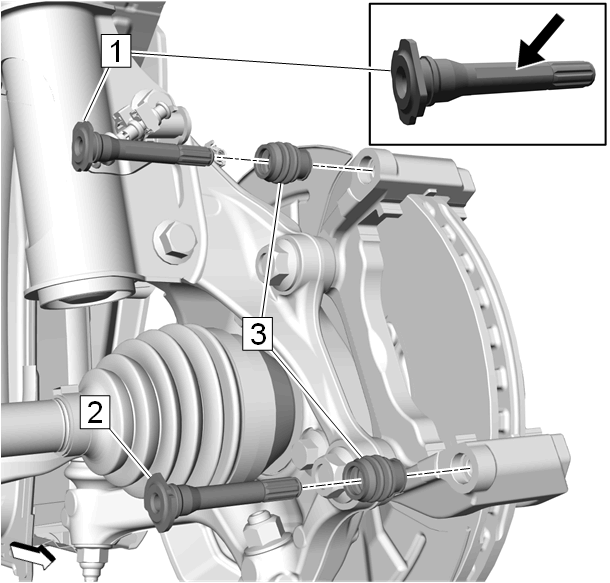

  4. GM4739747

    Front Brake Caliper Guide Pin Seal(3) - Install[2x]

  5. Apply a thin coat of special guide pin grease to the guide pins and insert a small amount of this grease into the guide pin holes. Adhesives, Fluids, Lubricants, and Sealers
    6. NOTE:
    • The upper guide pin has a bevel (arrow).
    • Ensure the brake caliper guide pin seal is fully seated in the groove of the brake caliper guide pin and the guide pin slides freely in caliper bracket bore.
    • Gently lift the edge of the guide pin seal while pushing the guide pin into the caliper bracket bore to expel any trapped air.
  6. Front Brake Caliper Guide Pin- Upper(1) - Install
    7. NOTE:
    • Ensure the brake caliper guide pin seal is fully seated in the groove of the brake caliper guide pin and the guide pin slides freely in caliper bracket bore.
    • Gently lift the edge of the guide pin seal while pushing the guide pin into the caliper bracket bore to expel any trapped air.
  7. Front Brake Caliper Guide Pin- Lower(2) - Install
  8. Front Disc Brake Pad & Front Disc Brake Pad Retaining Spring - Install - Front Disc Brake Pads Replacement (J60) Front Disc Brake Pads Replacement (JQ5) Front Disc Brake Pads Replacement (J17)
  9. Front Brake Caliper - Install - Front Brake Caliper Replacement (JQ5) Front Brake Caliper Replacement (J60) Front Brake Caliper Replacement (J17)
  10. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
