Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Brake Pipe - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

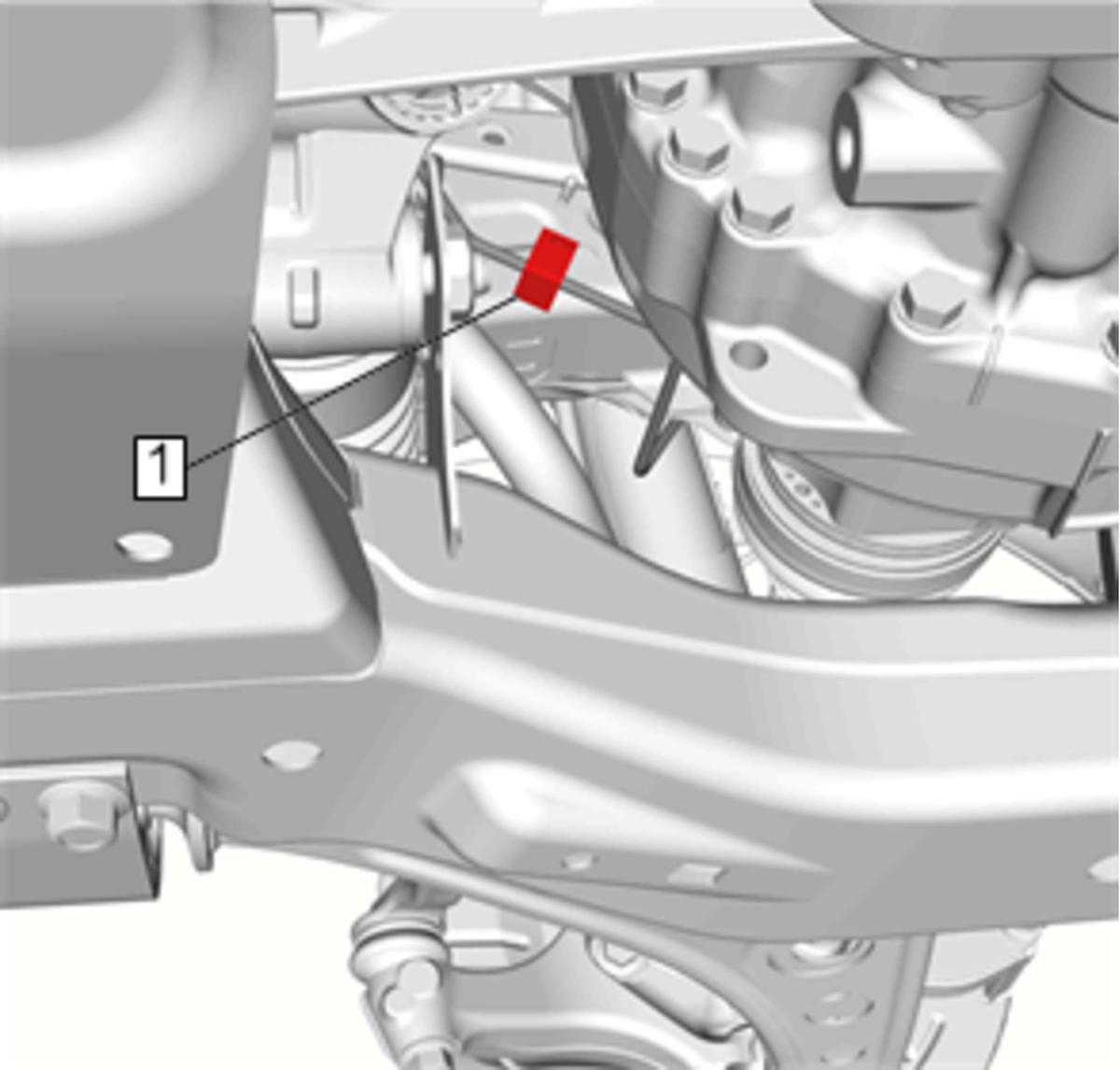

Brake Pipe Fitting (1) @Brake Hose - Install and tighten18 N.m (13 lb ft)
Courtesy of GENERAL MOTORS COMPANY

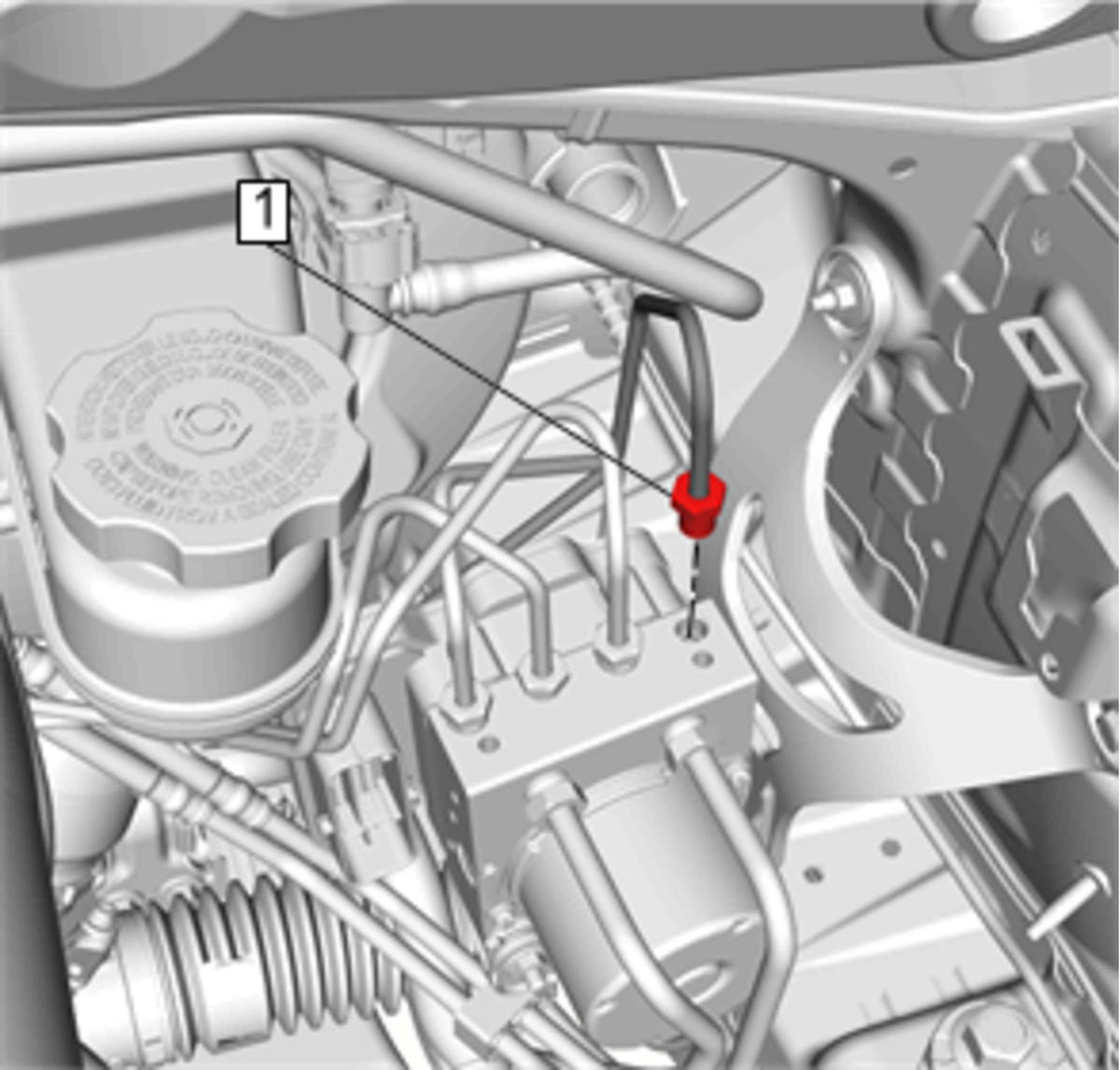

Clip (1) @Side Rail - Secure
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

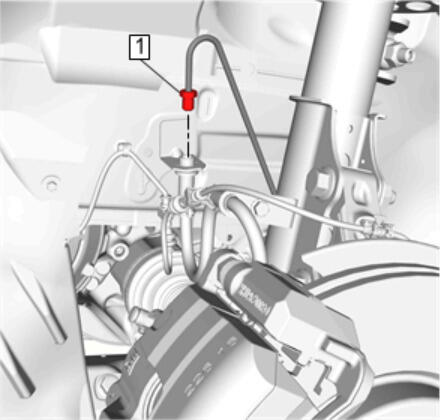

Clip (1) - Secure
Courtesy of GENERAL MOTORS COMPANY

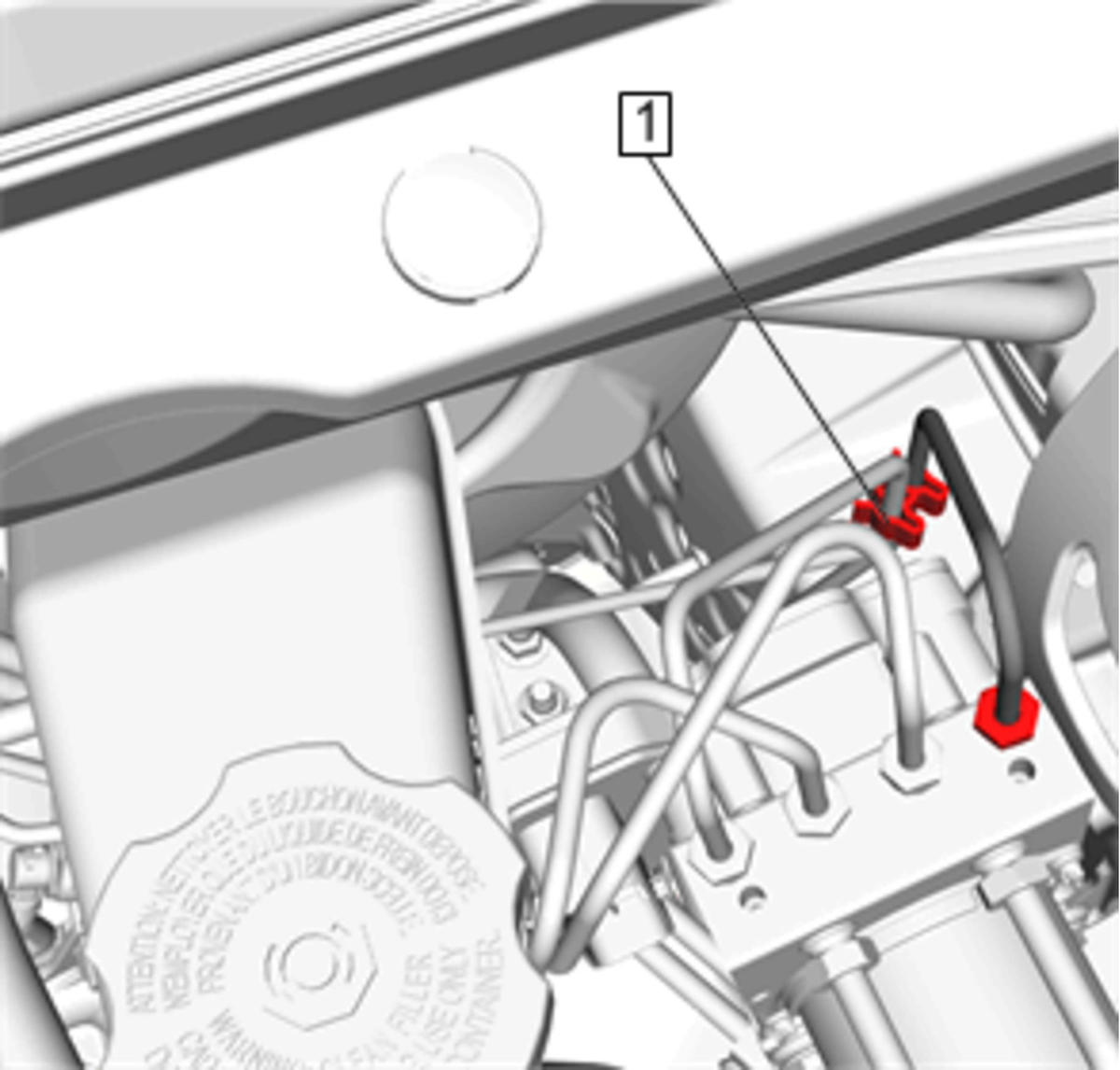

Left Front Brake Pipe Fitting (1) - Install and tighten18 N.m (13 lb ft)
Radiator Surge Tank Replacement - Install
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual)
