Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

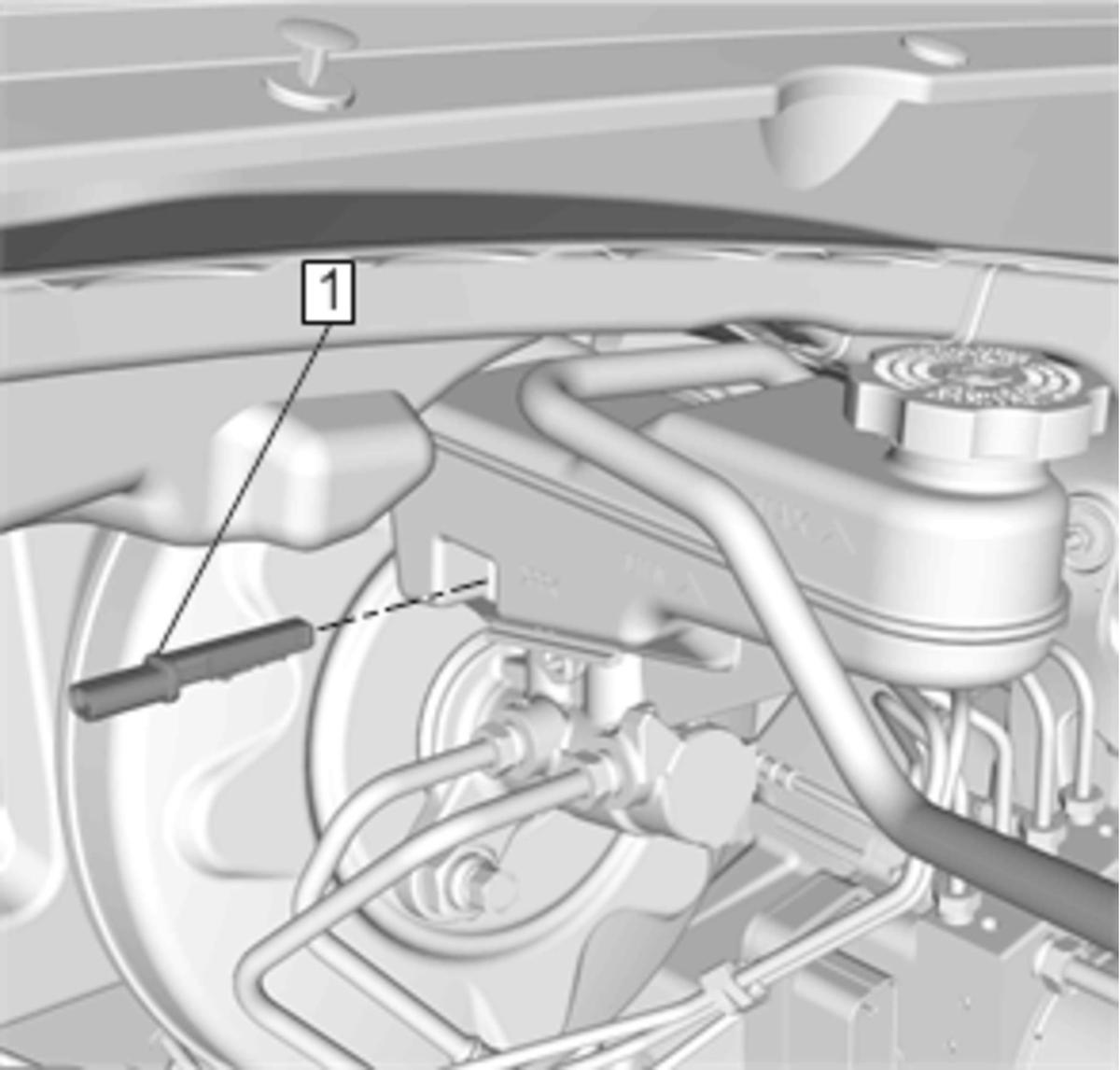

  1. GM4234167Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Sensor (1) - Install

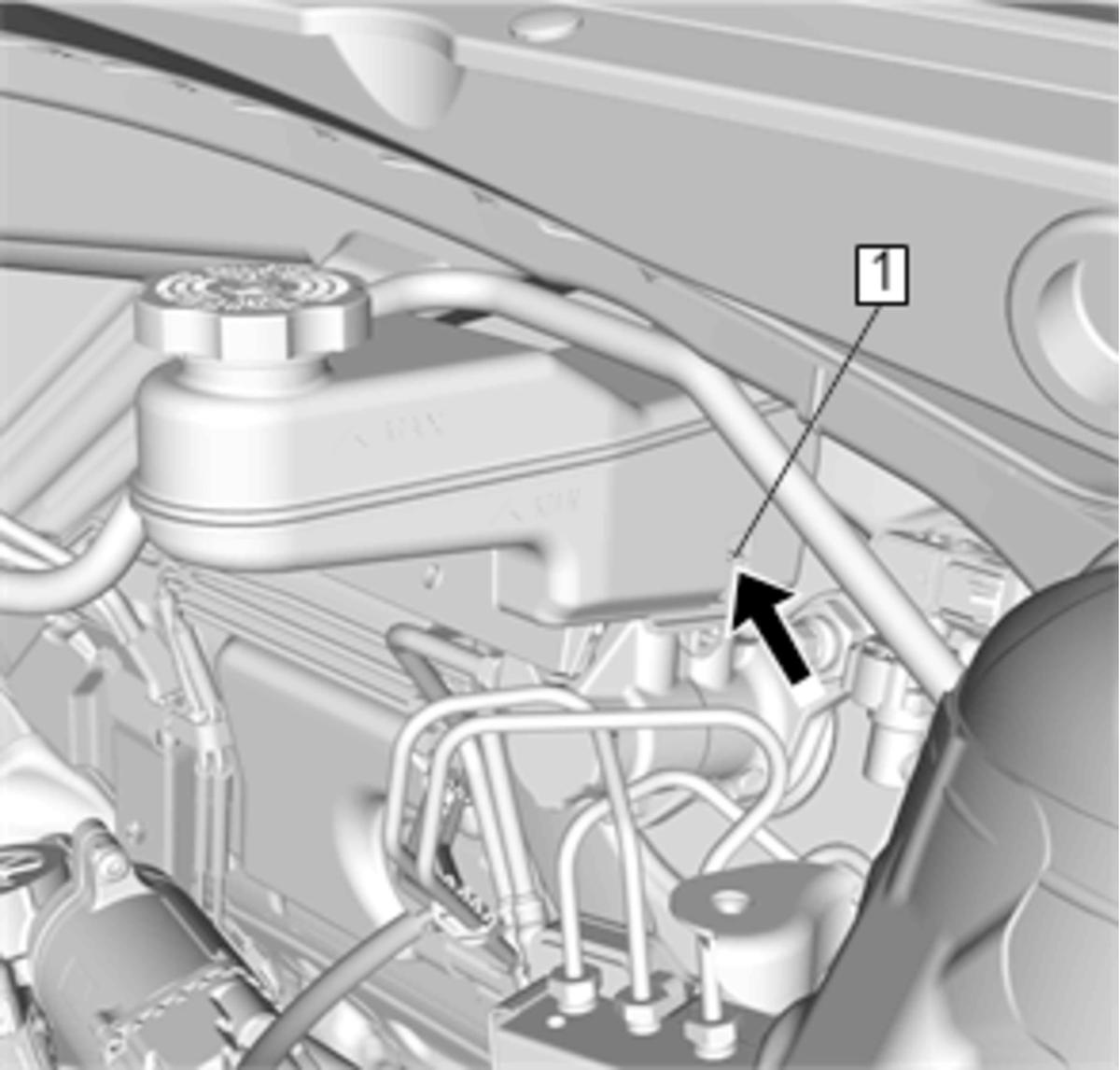

  2. GM4234161Courtesy of GENERAL MOTORS COMPANY

    Ensure the brake fluid level sensor locking tab (1) is fully engaged.

  3. Connect the brake fluid level sensor electrical connector.
  4. Radiator Surge Tank Replacement - Install
