Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Rear Wheel Bearing and Hub Assembly - Remove - Rear Wheel Bearing and Hub Replacement (AWD) Rear Wheel Bearing and Hub Replacement (FWD)

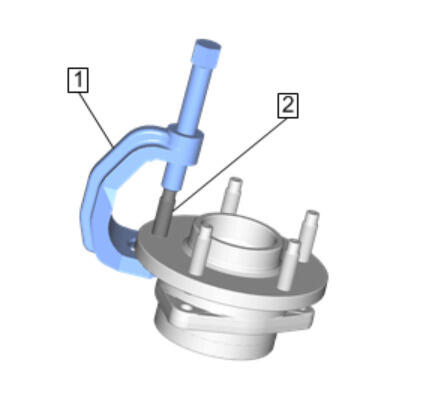

  3. GM4212755

    Position the wheel bearing and hub assembly in a suitable vise.

  4. Use the CH-43631  ball joint remover (1) to remove and discard the wheel stud (2).
