Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. GM4200198

    Rear Stabilizer Shaft Link Nut(1) - Remove

  3. Rear Stabilizer Shaft Link Bolt(2) - Remove

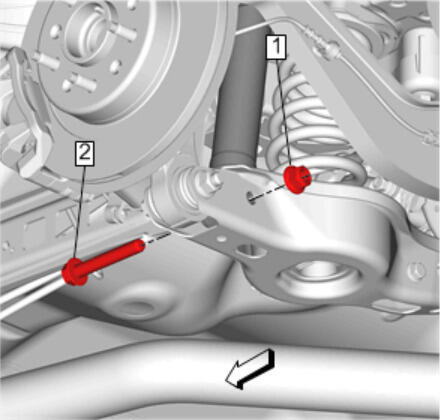

  4. GM4194652

    Rear Shock Absorber Nut(1) - Remove

  5. Rear Shock Absorber Bolt(2) - Remove

    DISCARD the bolt.

  6. Support the lower control arm.
  7. GM4195225

    Rear Suspension Lower Control Arm Nut(1) - Remove

  8. Rear Suspension Lower Control Arm Bolt(2) - Remove

    DISCARD the bolt.

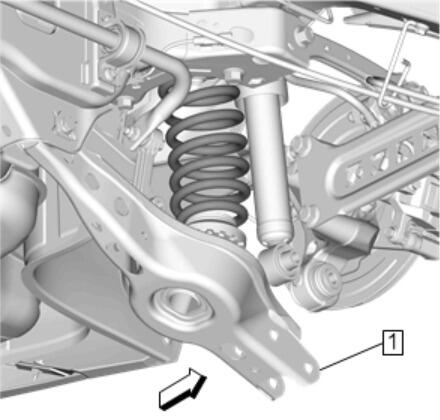

  9. GM4195227

    Lower the rear suspension lower control arm (1) to provide clearance for the rear coil spring. Lower Control Arm Replacement (FWD) Lower Control Arm Replacement (AWD)

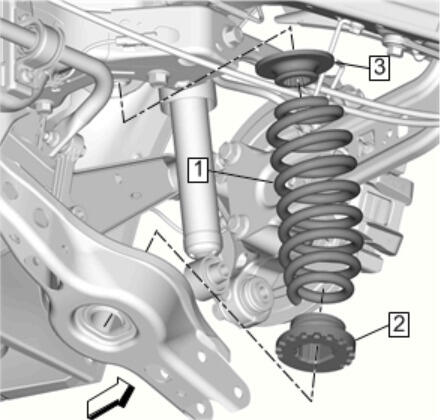

  10. GM4196869

    Rear Coil Spring(1) - Remove

  11. Rear Coil Spring Lower Insulator(2) - Remove
  12. Rear Coil Spring Insulator(3) - Remove
