Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4281767
    NOTE:

    Prior to assembly it is recommended to reposition the rear suspension knuckle bushing to aid during installation.

    Install a suitable socket (2) that is slightly smaller than the outside diameter of the rear suspension knuckle bushing (1).

  2. Install a suitable socket (3) that is larger than the outside diameter of the rear suspension knuckle bushing on the opposite side of the rear suspension knuckle (6).
  3. Install a suitable bolt (4) and nut (5).
  4. GM4281768

    Ensure that the socket (1) is larger than the rear suspension knuckle bushing and sits flush against the rear suspension knuckle (2).

  5. GM4281769

    Rotate the nut (1) forcing the socket (2) and the rear suspension knuckle bushing (3) flush with the rear suspension knuckle (4).

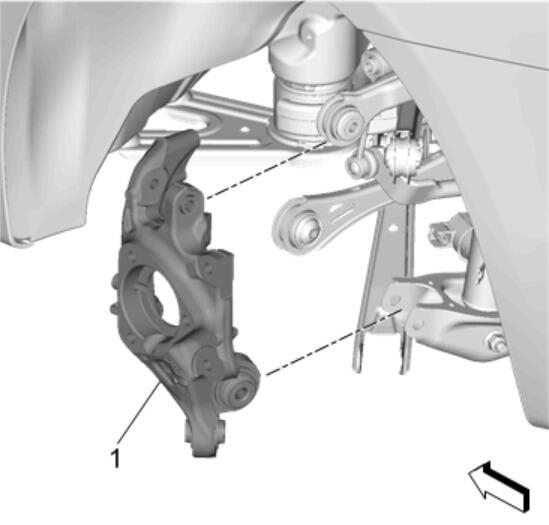

  6. GM4420299

    Rear Suspension Knuckle(1) - Install

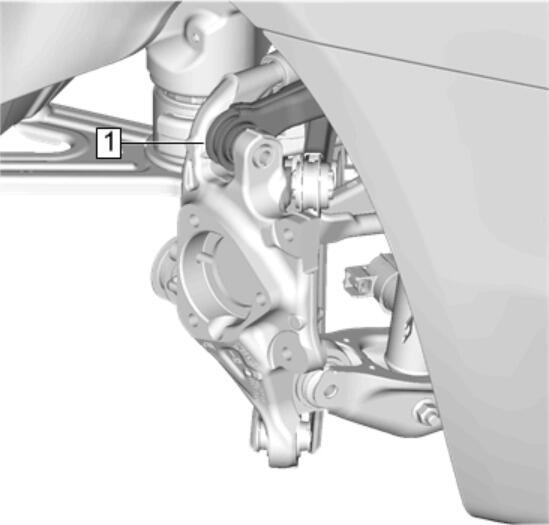

  7. GM4420286

    Rear Suspension Upper Lateral Link(1)@Rear Suspension Knuckle - Install - Rear Suspension Upper Lateral Link Replacement (FWD) Rear Suspension Upper Lateral Link Replacement (AWD)

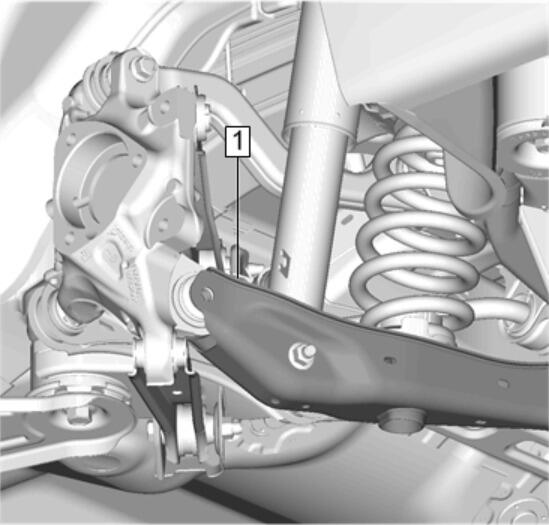

  8. GM4420280

    Rear Suspension Lower Control Arm(1)@Rear Suspension Knuckle - Install - Lower Control Arm Replacement (FWD) Lower Control Arm Replacement (AWD)

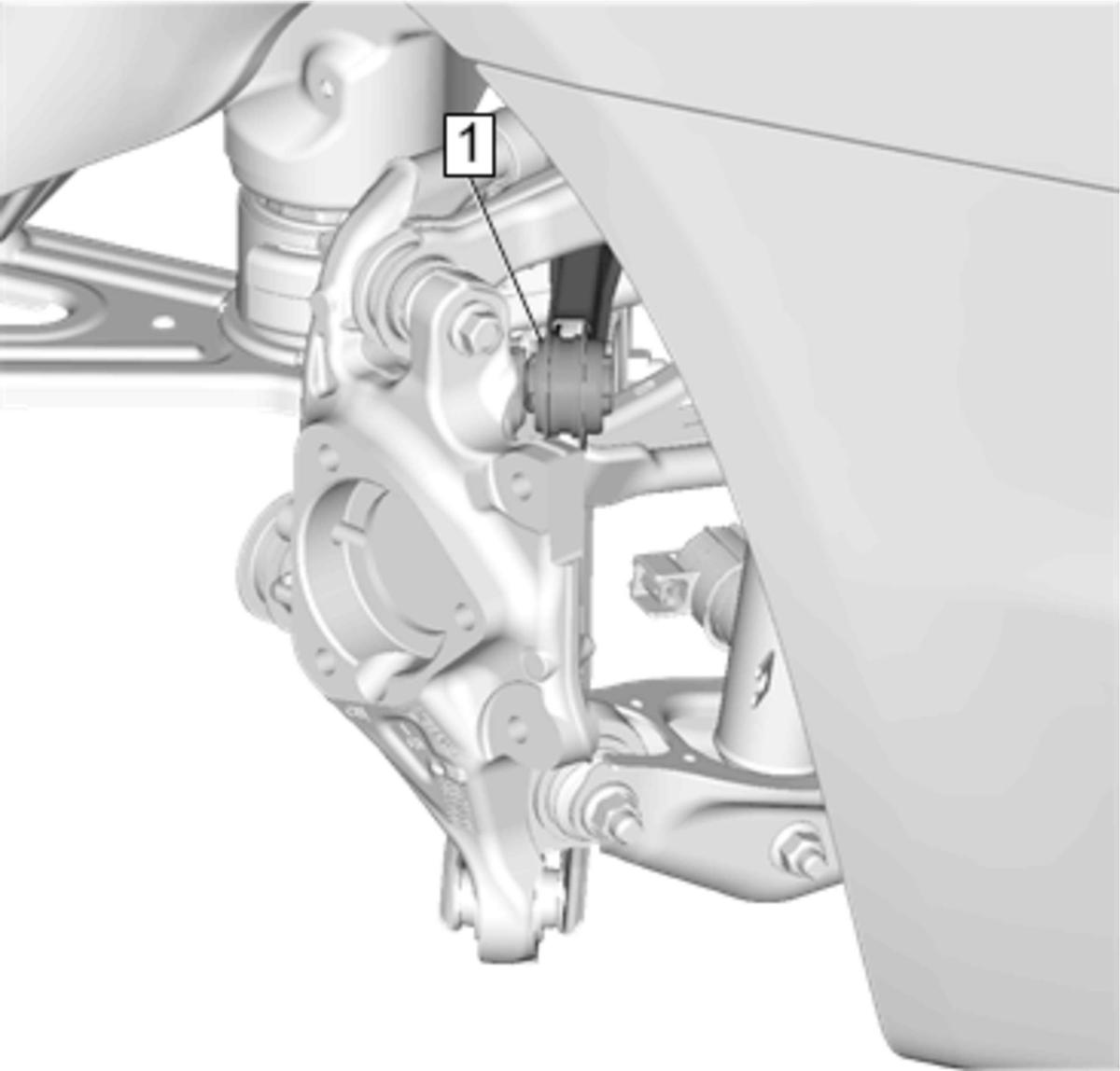

  9. GM4420030

    Rear Suspension Upper Trailing Link(1)@Rear Suspension Knuckle - Install - Rear Suspension Upper Trailing Link Replacement

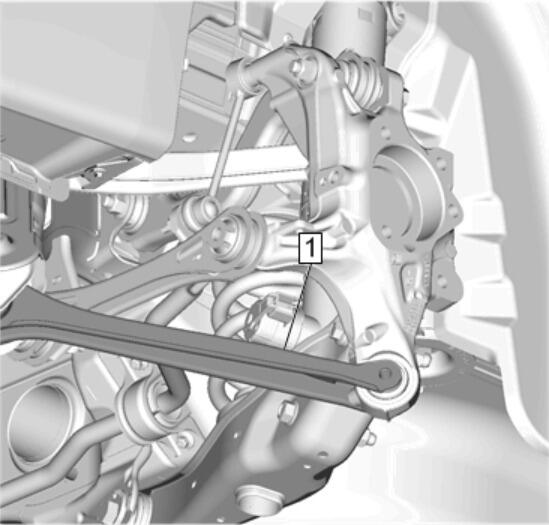

  10. GM4420019

    Rear Suspension Lower Trailing Link(1)@Rear Suspension Knuckle - Install - Rear Suspension Lower Trailing Link Replacement

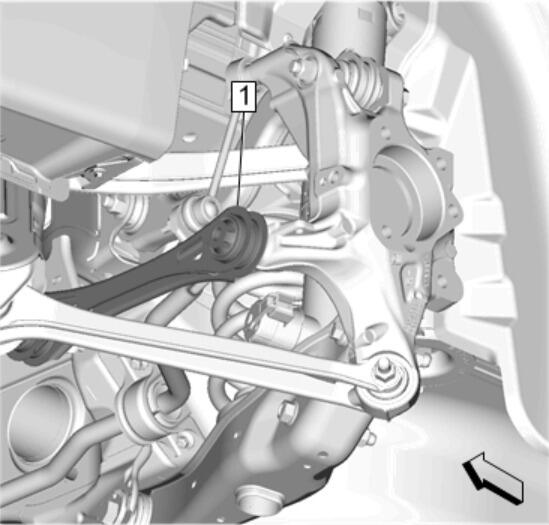

  11. GM4420010

    Rear Suspension Adjust Link(1) @Rear Suspension Knuckle - Install - Adjust Link Replacement (FWD) Adjust Link Replacement (AWD)

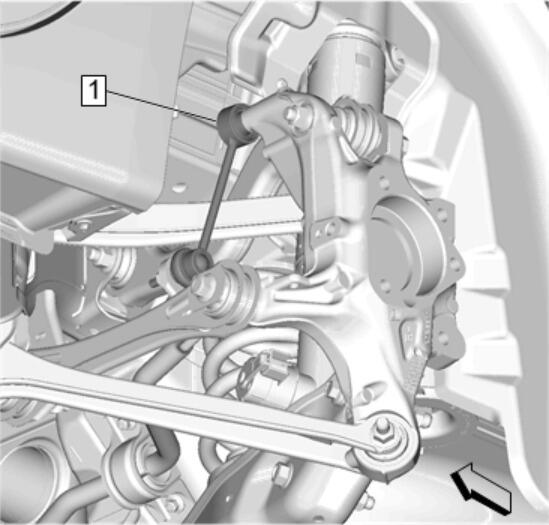

  12. GM4419953

    Rear Stabilizer Shaft Link(1)@Rear Suspension Knuckle - Install - Stabilizer Shaft Link Replacement (AWD) Stabilizer Shaft Link Replacement (FWD)

  13. GM4418618

    Rear Brake Shield(1) - Install Rear Brake Shield Replacement

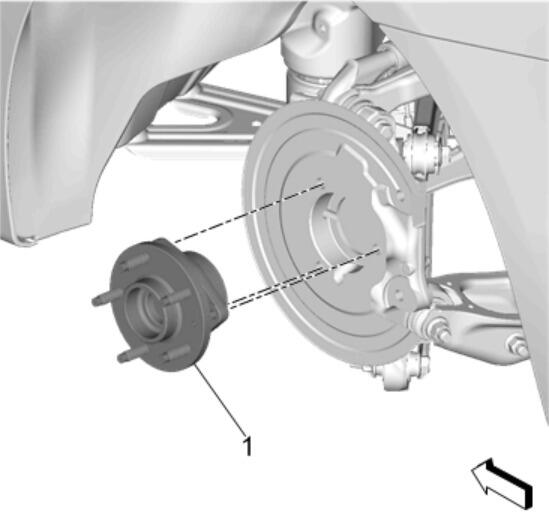

  14. GM4419692

    Rear Wheel Bearing and Hub Assembly(1) - Install Rear Wheel Bearing and Hub Replacement (AWD) Rear Wheel Bearing and Hub Replacement (FWD)

  15. Rear Wheel Speed Sensor@Rear Suspension Knuckle - Install - Rear Wheel Speed Sensor Replacement (Front Wheel Drive)Rear Wheel Speed Sensor Replacement (All Wheel Drive)

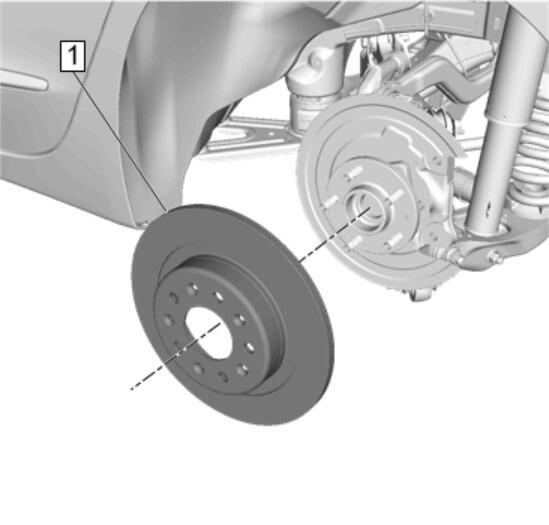

  16. GM4418608

    Rear Brake Rotor(1) - Install Rear Brake Rotor Replacement

  17. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  18. Remove the support and lower the vehicle.
