Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

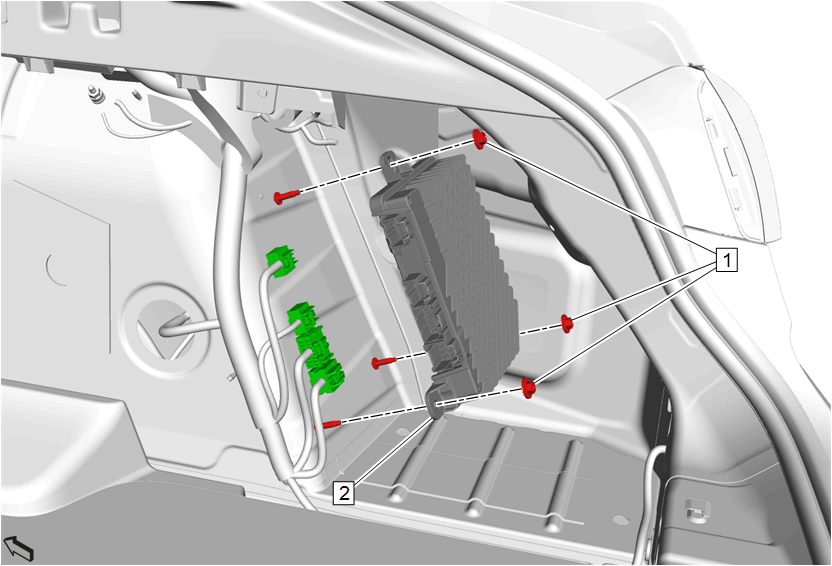

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Right Side (Hatchback)Rear Compartment Side Trim Replacement - Right Side (5-Door Wagon 35)
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Control Module References - Programming and Setup

Callout

Component Name

Preliminary Procedures
Rear Compartment Side Trim Replacement - Right Side (Hatchback)Rear Compartment Side Trim Replacement - Right Side (5-Door Wagon 35)

Radio Speaker Amplifier Nut [3x]

CAUTION:

Fastener Caution

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Control Module References - Programming and Setup
