Radio Antenna Module Replacement (Hatchback)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

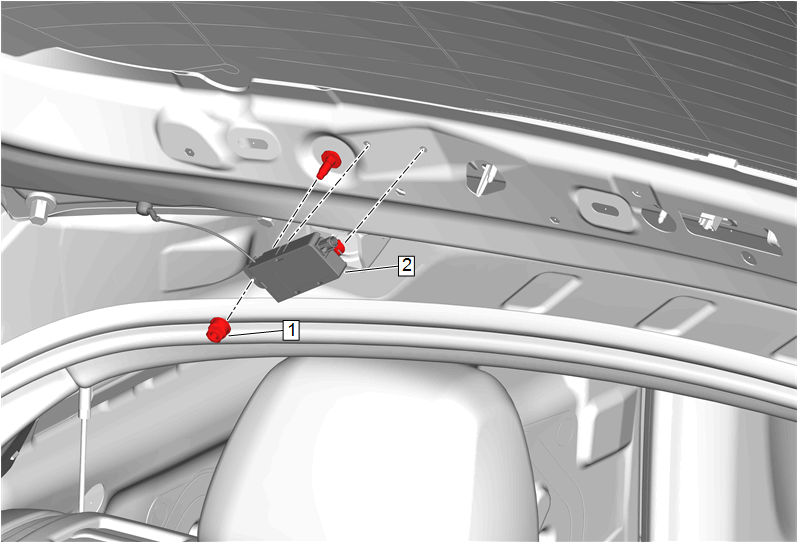

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Upper Side Trim Finish Panel Replacement |
|
| 1 | Radio Antenna Module Nut
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Module Procedure
|
