Roof Console Replacement
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

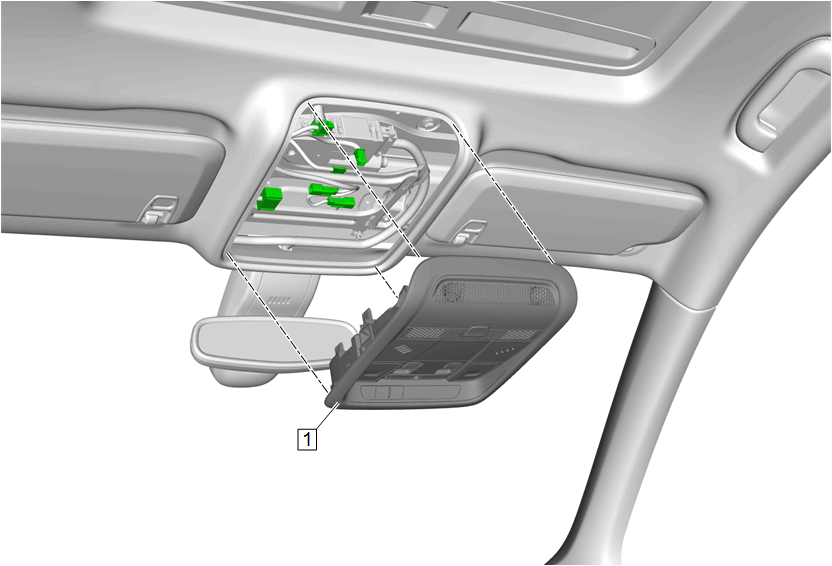

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Roof Console
Procedure
- Use a flat bladed plastic tool to remove.
- Disconnect the electrical connector.
NOTE:
When installing the roof console do not squeeze or kink any wiring harness.
|
