Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

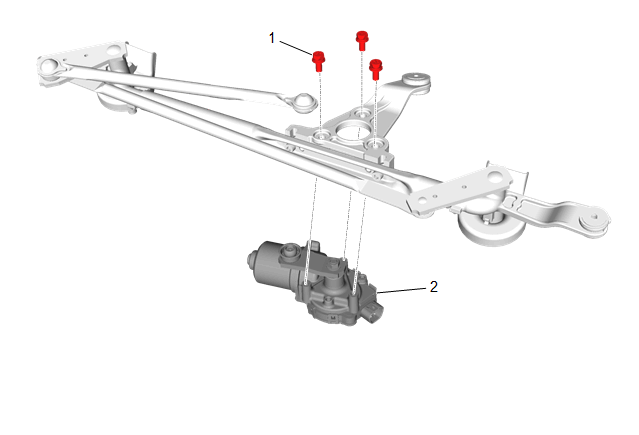

Position the windshield wiper motor (2) to the windshield wiper transmission.
- Windshield Wiper Motor Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Align the transmission links to the windshield wiper motor crank arm.

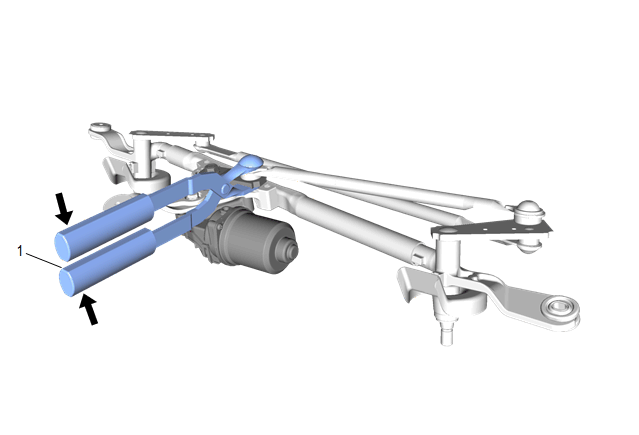

- Using the BO 39529 Wiper Linkage Installer (1), secure the windshield wiper motor crank arm ball to the transmission link ball socket.

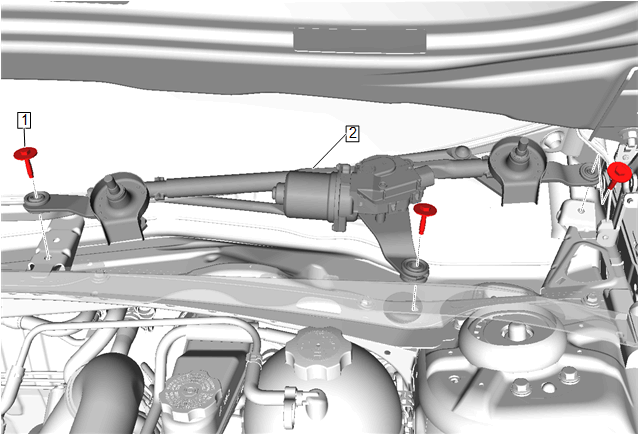

Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement
CAUTION:
Refer to Fastener Caution .
