T12 Automatic Transmission Assembly X2 (M3D/M3T)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

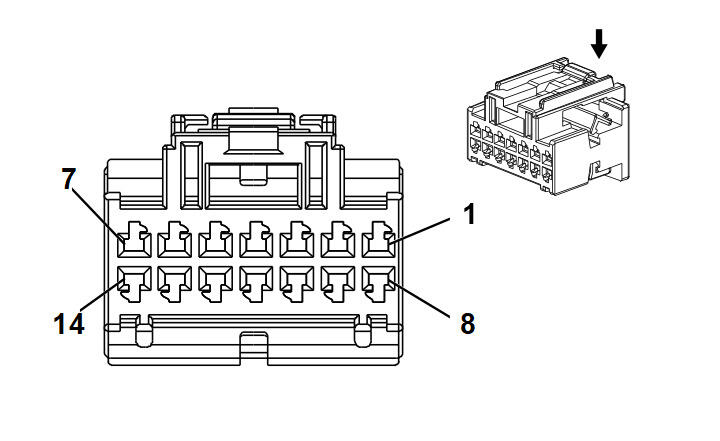

Connector Part Information
- Harness Type: Transmission
- OEM Connector: 13595443
- Service Connector: Service by Harness - See Part Catalog
- Description: 14-Way F 1.2 MCON Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/GN |
4171 |
Transmission Position Sensor A 9V Reference |
I |
- |
| 2 |
0.5 |
GY/BU |
6358 |
Output Speed Signal |
I |
- |
| 3 |
0.5 |
WH |
4508 |
Transmission Clutch G Control |
I |
- |
| 4 |
0.5 |
WH/BU |
4507 |
Transmission Clutch H Control |
I |
- |
| 5 |
0.5 |
GY/BK |
5501 |
TCC/Clutch Select Solenoid Control |
I |
- |
| 6 |
0.5 |
WH |
1971 |
Transmission Oil Level Sensor Signal |
I |
- |
| 7 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
VT |
6387 |
Transmission High Side Driver 1 Signal Driver |
I |
- |
