S70R Steering Wheel Controls Switch - Right (UDD/UHS)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

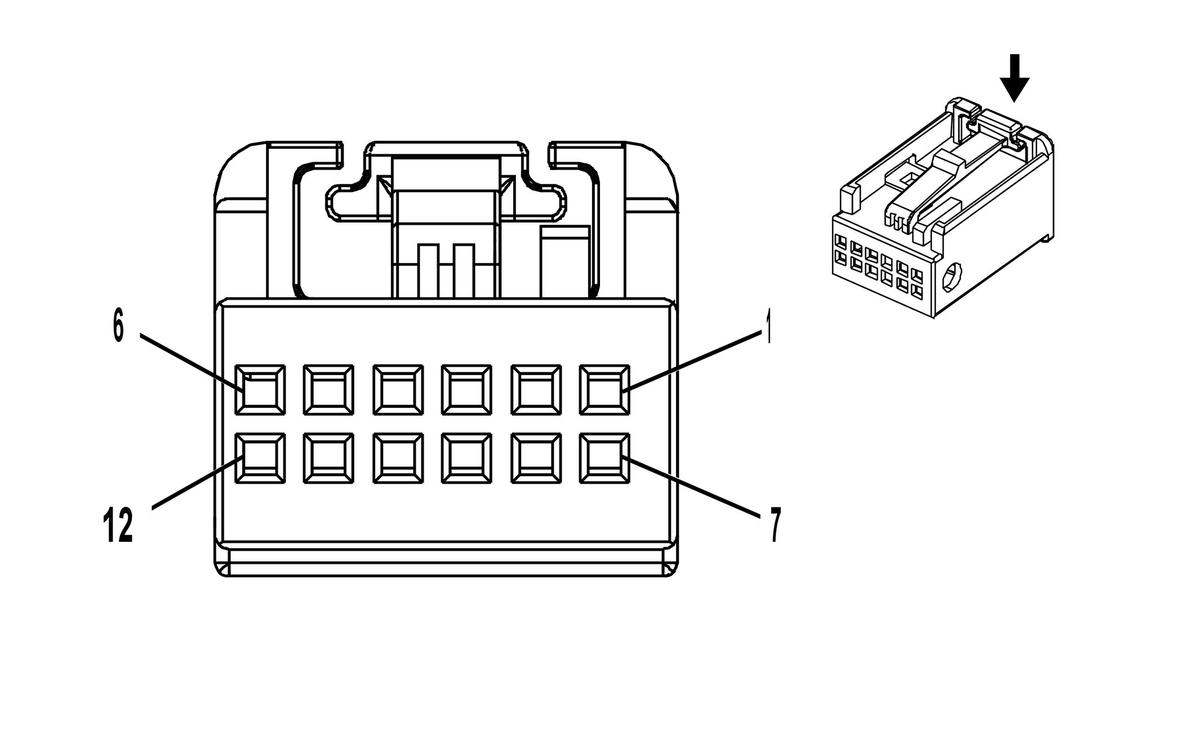

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 1718228-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F Service by Harness - See Part Catalog
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
9500 |
Voice Switch Control |
I |
- |
| 2 |
0.35 |
YE/GY |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
WH |
9501 |
Phone Switch Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
GN/GY |
6818 |
Steering Wheel Resistor Ladder Signal 1 |
I |
- |
| 6 |
0.35 |
VT |
1050 |
Ground |
I |
- |
| 7 |
0.35 |
WH |
3040 |
Battery Positive Voltage |
I |
- |
| 8 |
0.35 |
WH/BK |
6816 |
Indicator Dimming Control |
I |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
