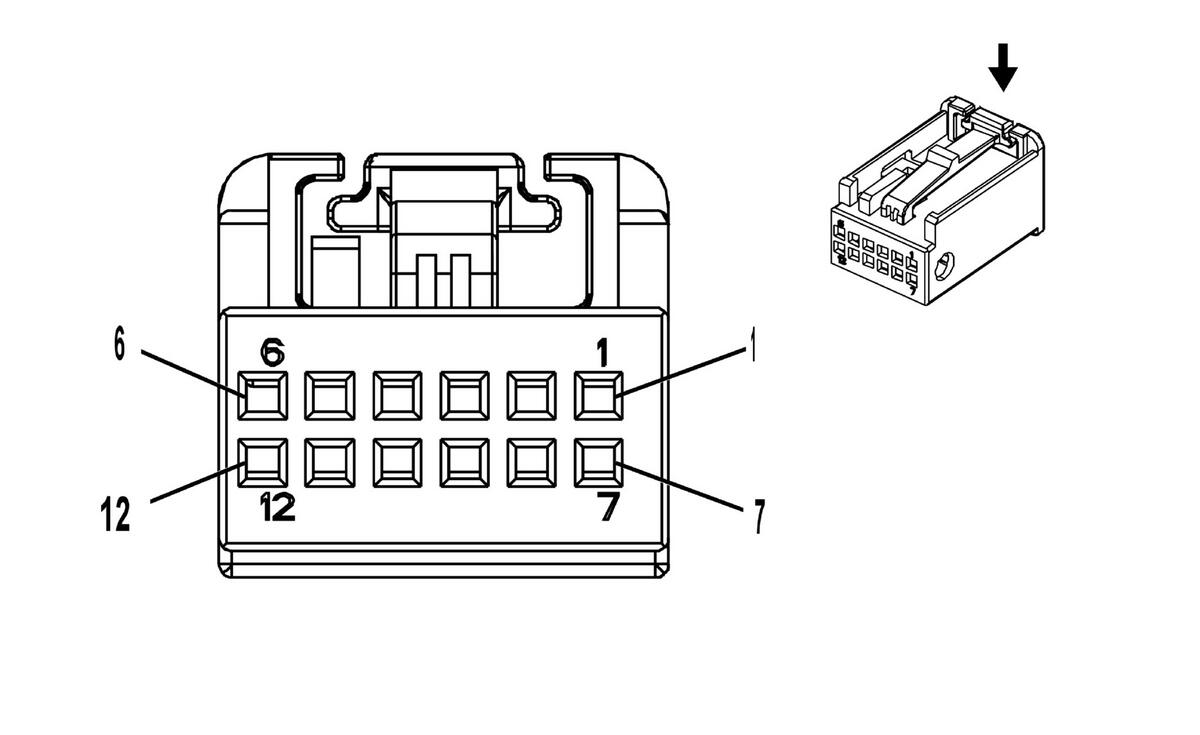

S70L Steering Wheel Controls Switch - Left (UDD/UHS)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13578798
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 0.64 GET Series (BK with BK Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
7556 |
Lighting Control Switch Reference |
I |
- |
| 2 |
0.35 |
BU |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
GY |
9501 |
- |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
VT/BK |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
0.35 |
BK |
1050 |
Ground |
I |
UVD |
| 7 |
0.35 |
BU |
3040 |
Battery Positive Voltage |
I |
- |
| 8 |
0.35 |
YE |
1444 |
12V Reference |
I |
UVD |
| 9 |
0.35 |
GY |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
UVD |
| 10 |
0.35 |
BN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 11 |
0.35 |
YE |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 12 |
0.35 |
BN |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
