S70L Steering Wheel Controls Switch - Left (UDC)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

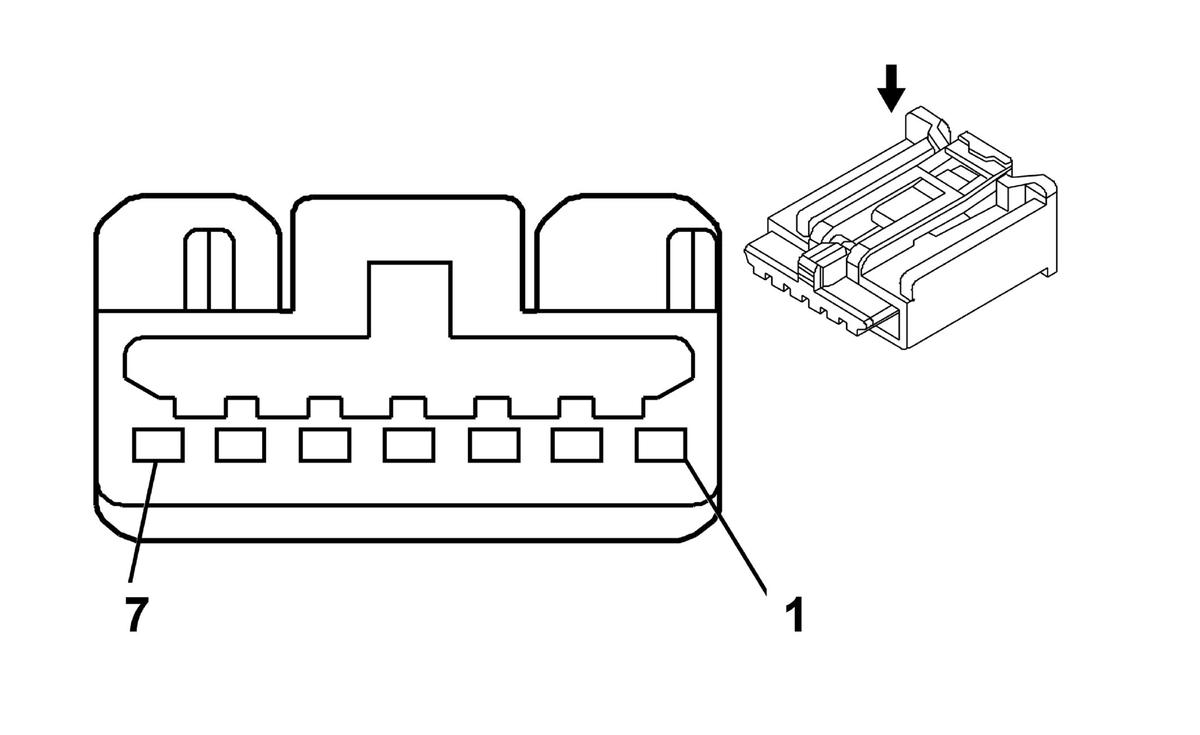

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 88988919
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F 0.64 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
7556 |
Lighting Control Switch Reference |
I |
- |
| 2 |
0.35 |
BU |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 3 |
0.35 |
GY |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BN |
6817 |
LED Backlight Dimming Control |
I |
- |
| 7 |
0.35 |
BK |
1050 |
Ground |
I |
- |
