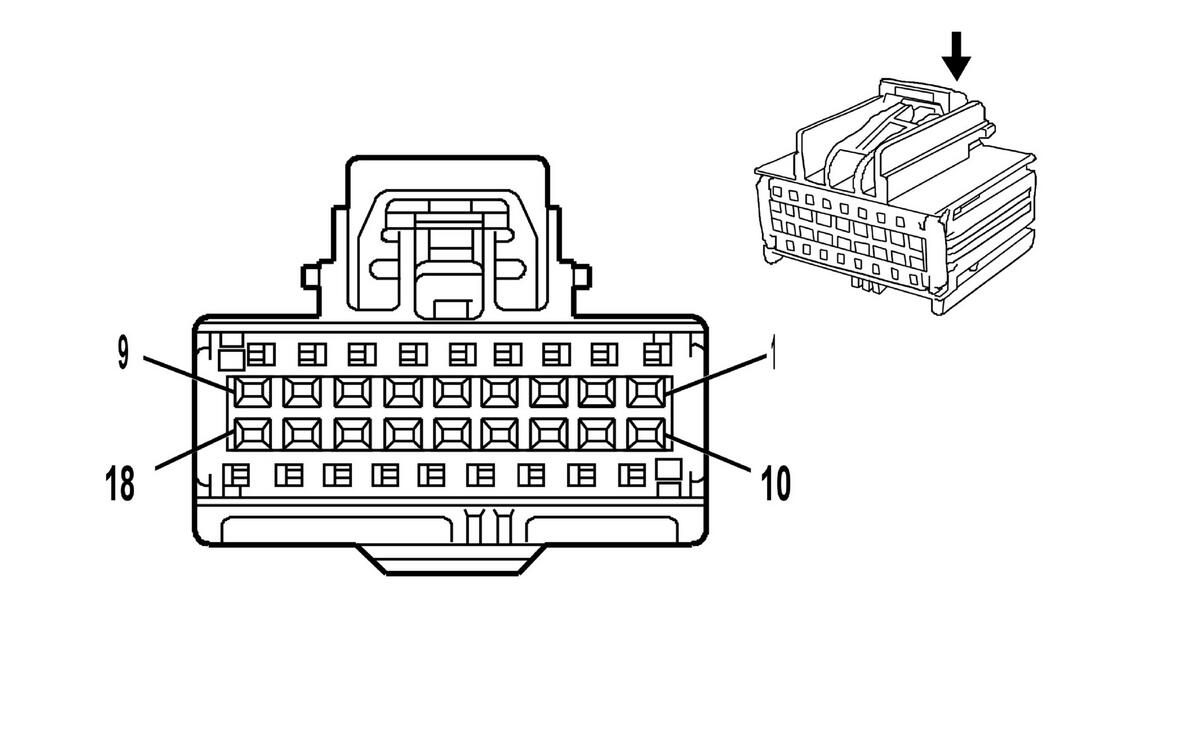

S48E Multifunction Switch - Center Console
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 89047360
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1850 |
Ground |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 4 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GY/GN |
2555 |
Rear Park Assist Disable Signal |
I |
UD5/UD7 |
| 10 |
0.35 |
GN/BN |
5852 |
Rear Park Assist LED Disable Signal |
I |
UD5/UD7 |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
GY |
5054 |
Sport Mode Switch Signal |
I |
F45 /UJC |
| 13 |
0.35 |
GN/GY |
3215 |
Computer Command Ride Sport LED Control |
I |
F45/UJC |
| 14 |
0.35 |
BU/GY |
553 |
Shift Select Switch Performance Signal |
I |
F45 |
| 15 |
0.35 |
WH/BU |
3214 |
Computer Command Ride Tour LED Control |
I |
F45 |
| 16 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
UHX/UGN |
| 17 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
UHX/UGN |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
