S47P Seat Memory Switch - Passenger (A44)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

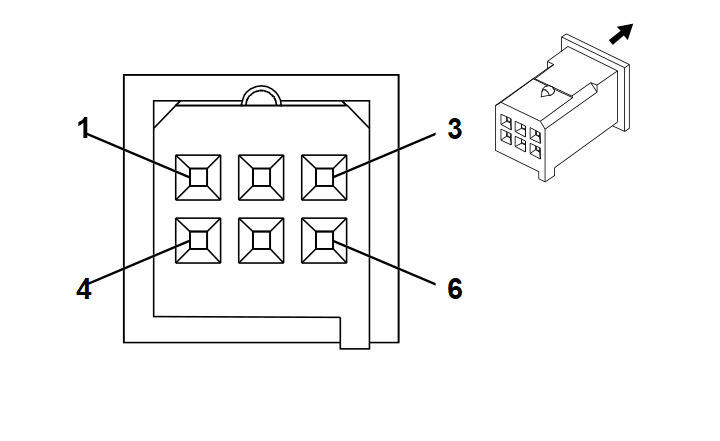

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 24414934
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK/BU |
4262 |
Passenger Memory Switch Low Reference 1 |
I |
- |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BU/GN |
4260 |
Passenger Memory Seat Switch Set Signal |
I |
- |
| 6 |
0.35 |
WH |
4261 |
Passenger Memory Seat Switch Signal 1 |
I |
- |
