S13D Door Lock Switch - Driver
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

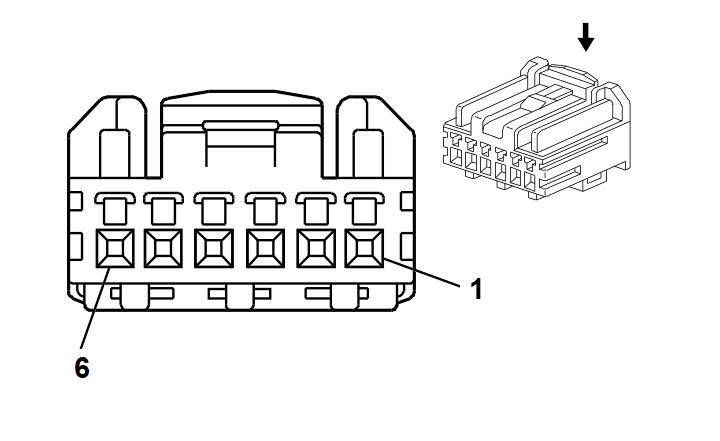

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 19153361
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 2 |
0.5 |
BN/YE |
780 |
Driver Door Lock Switch Lock Signal |
I |
- |
| 3 |
0.5 |
BN/WH |
781 |
Driver Door Lock Switch Unlock Signal |
I |
- |
| 4 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 5 |
0.5 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
0.5 |
WH/VT |
3270 |
Driver Door Lock Motor Status Signal |
I |
- |
