Q51D Seat Lumbar Support Valve Assembly - Driver (AL9)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

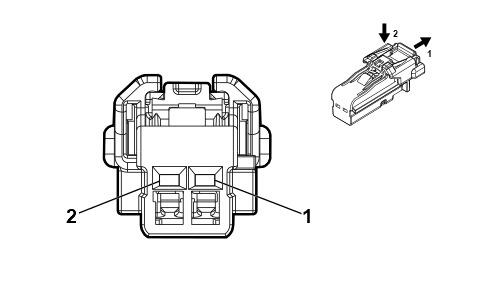

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-7685
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
611 |
Driver Power Seat Lumbar Motor Forward Control |
I |
- |
| 2 |
0.5 |
VT |
610 |
Driver Power Seat Lumbar Motor Rearward Control |
I |
- |
