K77 Remote Control Door Lock Receiver
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

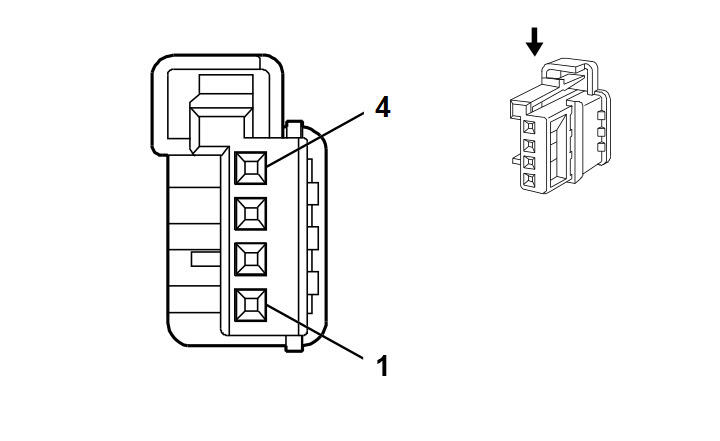

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.35 |
BK GY |
550 3273 |
Ground Remote Function Actuator Low Reference |
I I |
HATCHBACK WAGON |
| 2 | 0.13 | GN | 3274 | Remote Function Actuator Transmit Signal | I | - |
| 3 | 0.13 | BU | 3275 | Remote Function Actuator Receive Signal | I | WAGON |
| 4 | 0.35 | GY/WH | 3272 | Remote Function Actuator Control | I | - |
