K182 Parking Assist Control Module X2 (UD5/UD7)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

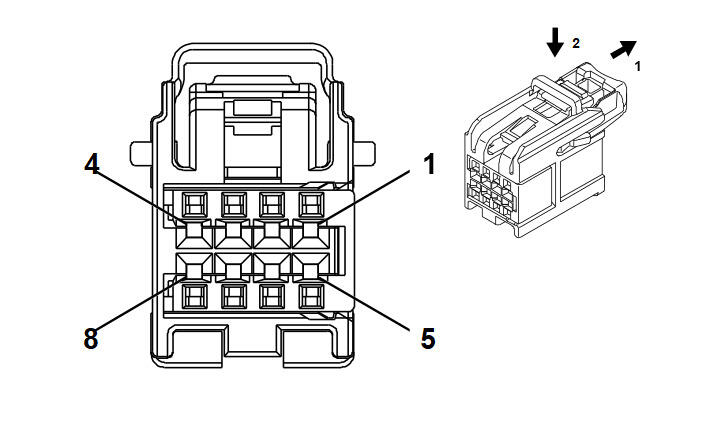

Connector Part Information
- Harness Type: Body
- OEM Connector: 13591516
- Service Connector: 19353873
- Description: 8-Way F 0.64 OCS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
2375 |
Left Rear Corner Object Sensor Signal |
I |
- |
| 2 |
0.35 |
BU |
3157 |
Right Rear Supplemental Object Sensor Signal |
I |
- |
| 3 |
0.5 |
YE/BU |
2376 |
Left Rear Middle Object Sensor Signal |
I |
- |
| 4 |
0.5 |
BN/WH |
2374 |
Object Sensor Control |
I |
- |
| 5 |
0.5 |
YE/VT |
2378 |
Right Rear Corner Object Sensor Signal |
I |
- |
| 6 |
0.35 |
GN/YE |
3156 |
Left Rear Supplemental Object Sensor Signal |
I |
- |
| 7 |
0.5 |
YE/WH |
2377 |
Right Rear Middle Object Sensor Signal |
I |
- |
| 8 |
0.5 |
BK/GY |
2379 |
Object Sensor Low Reference |
I |
- |
