Front Floor Console Rear Trim Panel Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

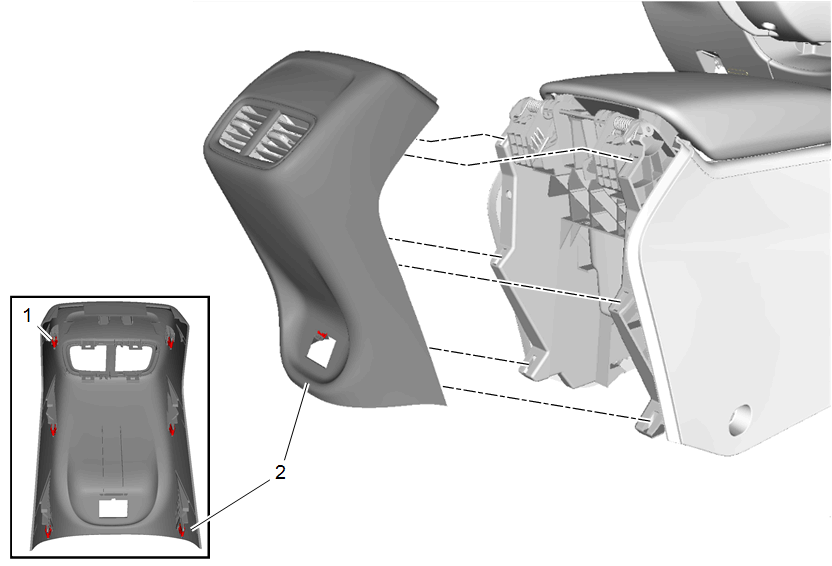

GM4626769Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Trim Panel Retainer [6x]
Procedure
Use a flat bladed plastic tool to remove.
2 Front Floor Console Rear Trim Panel

Procedure

  1. If equipped, transfer the USB receptacle. USB Receptacle Replacement .
  2. Transfer the front floor console rear air outlet. Front Floor Console Rear Air Outlet Replacement .
