Airbag Front End Discriminating Sensor Protector Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

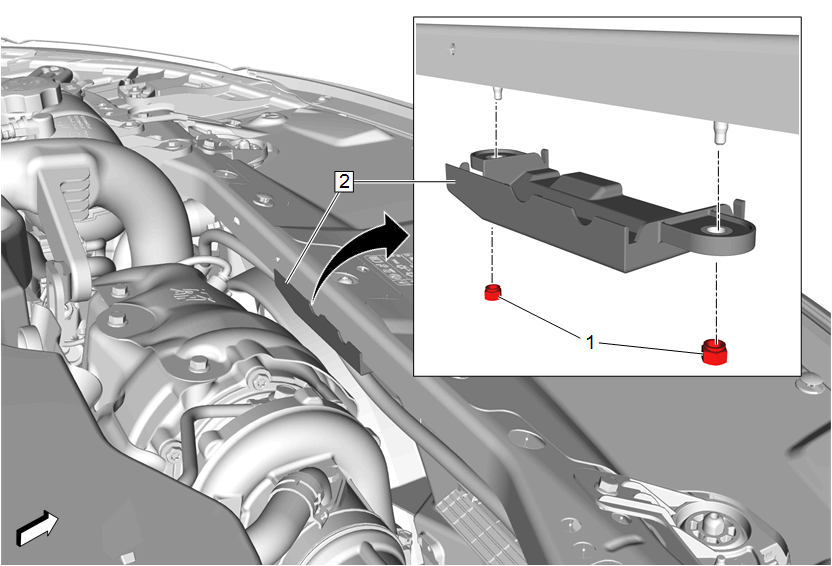

GM4695884Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Airbag Front End Discriminating Sensor Protector Nut [2x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Airbag Front End Discriminating Sensor Protector
