K47 Rear Differential Clutch Control Module X2 (F46)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

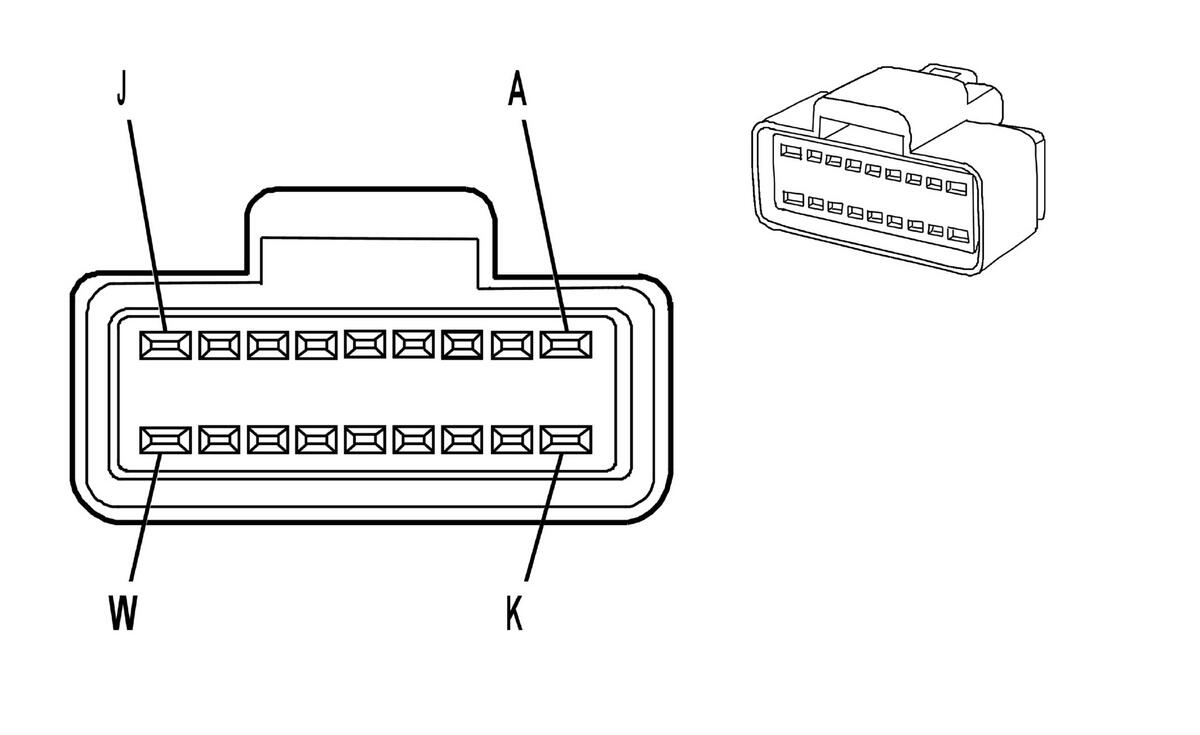

Connector Part Information
- Harness Type: Rear Axle
- OEM Connector: 15326082
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 150, 280 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.75 |
RD/BK |
- |
- |
I |
- |
| B |
0.75 |
BU/WH |
- |
- |
I |
- |
| C |
0.75 |
BU/OG |
- |
- |
I |
- |
| D |
0.75 |
BU |
- |
- |
I |
- |
| E |
0.75 |
PU/WH |
- |
- |
I |
- |
| F |
0.75 |
PU |
- |
- |
I |
- |
| G |
- |
- |
- |
Not Occupied |
- |
- |
| H |
0.75 |
RD |
- |
- |
I |
- |
| J - N |
- |
- |
- |
Not Occupied |
- |
- |
| P |
0.75 |
WH/BK |
- |
- |
I |
- |
| R |
0.75 |
WH/OG |
- |
- |
I |
- |
| S |
0.75 |
WH |
- |
- |
I |
- |
| T - W |
- |
- |
- |
Not Occupied |
- |
- |
