K47 Rear Differential Clutch Control Module X1 (F46)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

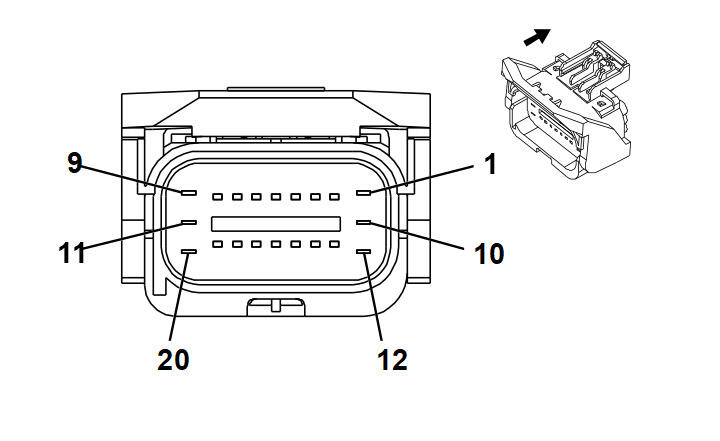

Connector Part Information
- Harness Type: Rear Axle
- OEM Connector: 13770958
- Service Connector: Service by Harness - See Part Catalog
- Description: 20-Way F 1.5, 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
F46 |
| 6 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
F46 |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
2.5 |
BK |
2350 |
Ground |
II |
F46 |
| 10 |
0.5 |
RD/VT |
1940 |
Battery Positive Voltage |
II |
F46 |
| 11 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
II |
F46 |
| 12 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
F46 |
| 17 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
F46 |
| 18 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
F46 |
| 19 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
F46 |
| 20 |
2.5 |
RD/VT |
1640 |
Battery Positive Voltage |
II |
F46 |
