K36 Inflatable Restraint Sensing and Diagnostic Module X2

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

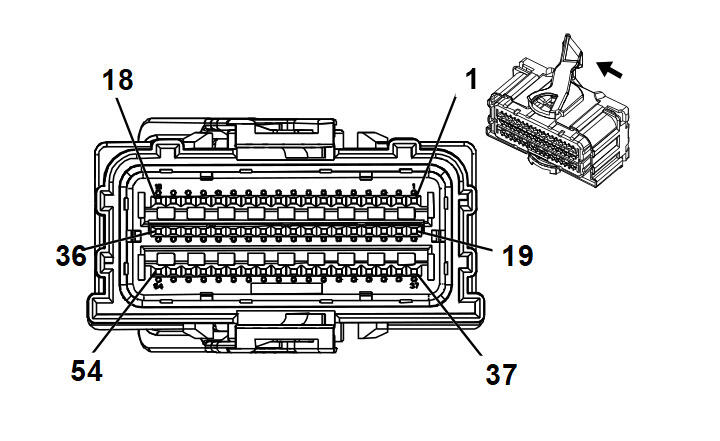

Connector Part Information

Harness Type: Body
OEM Connector: 13508191
Service Connector: 19355768
Description: 54-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19367373	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	19368490	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 4	-	-	-	Not Occupied	-	-
5	0.35	OG/GY	5223	Left Rear Side Impact SIR Inflator Control	I	-
6	0.35	BN/OG	5224	Left Rear Side Impact SIR Inflator Control	I	-
7	0.35	OG/GY	5226	Right Rear Side Impact SIR Inflator Control	I	-
8	0.35	VT/OG	5225	Right Rear Side Impact SIR Inflator Control	I	-
9	0.35	OG/YE	3481	Driver Seat Belt Anchor Pretensioner High Control	I	-
10	0.35	YE/OG	3482	Driver Seat Belt Anchor Pretensioner Low Control	I	-
11	0.35	GY/OG	3480	Passenger Seat Belt Anchor Pretensioner Low Control	I	-
12	0.35	OG/BN	3479	Passenger Seat Belt Anchor Pretensioner High Control	I	-
13	0.35	OG/BU	3068	Driver Side Impact Module High Control	I	-
14	0.35 0.35	OG/OG BK/OG	3069 3069	Driver Side Impact Module Low Control Driver Side Impact Module Low Control	I I	LHD RHD
15	0.35	BU/OG	3067	Passenger Side Impact Module Low Control	I	-
16	0.35 0.35	OG/GY OG/GY	3066 3066	Passenger Side Impact Module High Control Passenger Side Impact Module High Control	I I	LHD RHD
17	0.35 0.35	OG/GN OG/GN	5019 5019	Left Front Head Curtain Module High Control Left Front Head Curtain Module High Control	I I	HATCHBACK Wagon
18	0.35 0.35	VT/OG VT/OG	5020 5020	Left Front Head Curtain Module Low Control Left Front Head Curtain Module Low Control	I I	HATCHBACK Wagon
19	0.35	OG/GN	2132	Left Front Side Impact Sensing Module Signal	I	-
20	0.35 0.35	BK/OG BK/OG	6628 6628	Left Front Side Impact Sensing Module Low Reference Left Front Side Impact Sensing Module Low Reference	I I	LHD RHD
21	0.35 0.35	BK/OG BK/OG	6629 6629	Right Front Side Impact Sensing Module Low Reference Right Front Side Impact Sensing Module Low Reference	I I	LHD RHD
22	0.35 0.35	BN/OG BN/OG	2134 2134	Right Front Side Impact Sensing Module Signal Right Front Side Impact Sensing Module Signal	I I	LHD RHD
23	0.35 0.35 0.35	OG/YE OG/YE OG/GY	354 354 6618	Left Front Discriminating Sensor Signal Left Front Discriminating Sensor Signal Middle Front Discriminating Sensor Signal	I I I	-BAT3 LGX LTG
24	0.35 0.35	BK/OG BK/OG	5045 6619	Left Front Discriminating Sensor Low Reference Middle Front Discriminating Sensor Low Reference	I I	LGX LTG
25	0.35	BK/OG	5600	Right Front Discriminating Sensor Low Reference	I	-
26	0.35	OG/GN	1409	Right Front Discriminating Sensor Signal	I	-
27	0.35	OG/BU	6622	Left Rear Side Impact Sensing Module Signal	I	-
28	0.35	BK/OG	6623	Left Rear Side Impact Sensing Module Low Reference	I	-
29	0.35	BK/OG	6627	Right Rear Side Impact Sensing Module Low Reference	I	-
30	0.35	OG/WH	6626	Right Rear Side Impact Sensing Module Signal	I	-
31	0.35	BN/YE	4038	Pedestrian Protection Safing Sensor Module Signal	I	UD5/T3U
32	0.35 0.35	BK/VT BK/VT	4045 4045	Pedestrian Protection Safing Sensor Module Low Reference Pedestrian Protection Safing Sensor Module Low Reference	I I	UD5/T3U -UKG
33	0.5	BK/OG	7491	Left Hood Actuator Low Control	II	-
34	0.5	WH/RD	7492	Left Hood Actuator High Control	II	-
35	0.5	VT/RD	7490	Right Hood Actuator High Control	II	-
36	0.5	BK/OG	7489	Right Hood Actuator Low Control	II	-
37	0.35 0.35	OG/WH OG/WH	3477 3477	Driver Seat Belt Retractor Pretensioner High Control Driver Seat Belt Retractor Pretensioner High Control	I I	LHD RHD
38	0.35 0.35	GY/OG GY/OG	3478 3478	Driver Seat Belt Retractor Pretensioner Low Control Driver Seat Belt Retractor Pretensioner Low Control	I I	LHD RHD
39	0.35	WH/OG	3476	Passenger Seat Belt Retractor Pretensioner Low Control	I	-
40	0.35	OG/GN	3475	Passenger Seat Belt Retractor Pretensioner High Control	I	-
41	0.35	OG/BN	238	Driver Seat Belt Switch Signal	I	-
42	-	-	-	Not Occupied	-	-
43	0.35	BK/OG	1363	Driver Seat Belt Switch Low Reference	I	-
44	0.35	BK/OG	1361	Passenger Seat Belt Switch Low Reference	I	-
45	0.35	OG/VT	1362	Passenger Seat Belt Switch Signal	I	-
46	-	-	-	Not Occupied	-	-
47	0.35	OG/BN	7571	Passenger Seat Belt Reminder Signal	I	-
48 - 50	-	-	-	Not Occupied	-	-
51	0.35	BN/WH	4035	Pedestrian Protection Impact Sensing Module Low Reference	I	UD5/T3U
52	0.35	OG/VT	4034	Pedestrian Protection Impact Sensing Module Signal	I	UD5/T3U
53	0.35 0.35	OG/GY OG/GY	5021 5021	Right Front Head Curtain Module High Control Right Front Head Curtain Module High Control	I I	HATCHBACK WAGON
54	0.35 0.35	WH/OG WH/OG	5022 5022	Right Front Head Curtain Module Low Control Right Front Head Curtain Module Low Control	I I	HATCHBACK Wagon
