Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

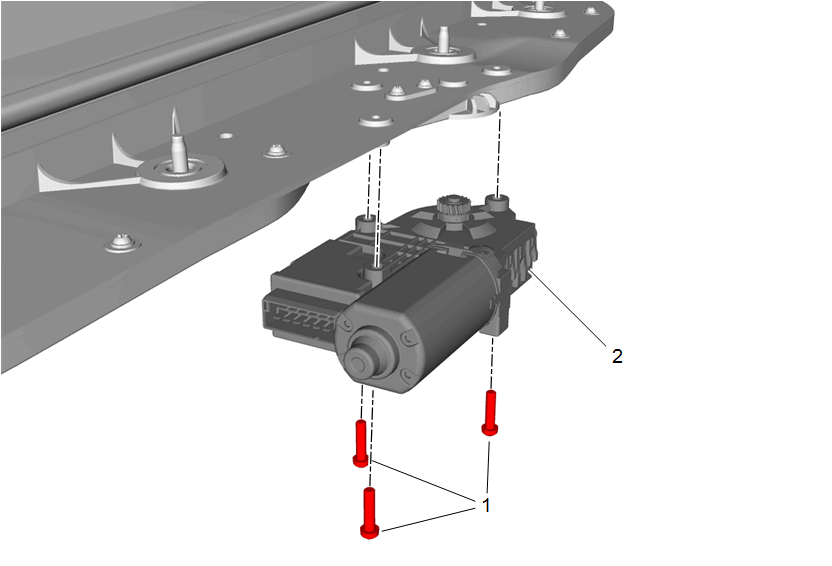

  1. GM4623238

    Sunroof Window Motor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Sunroof Window Motor Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
  3. Connect the electrical connector.

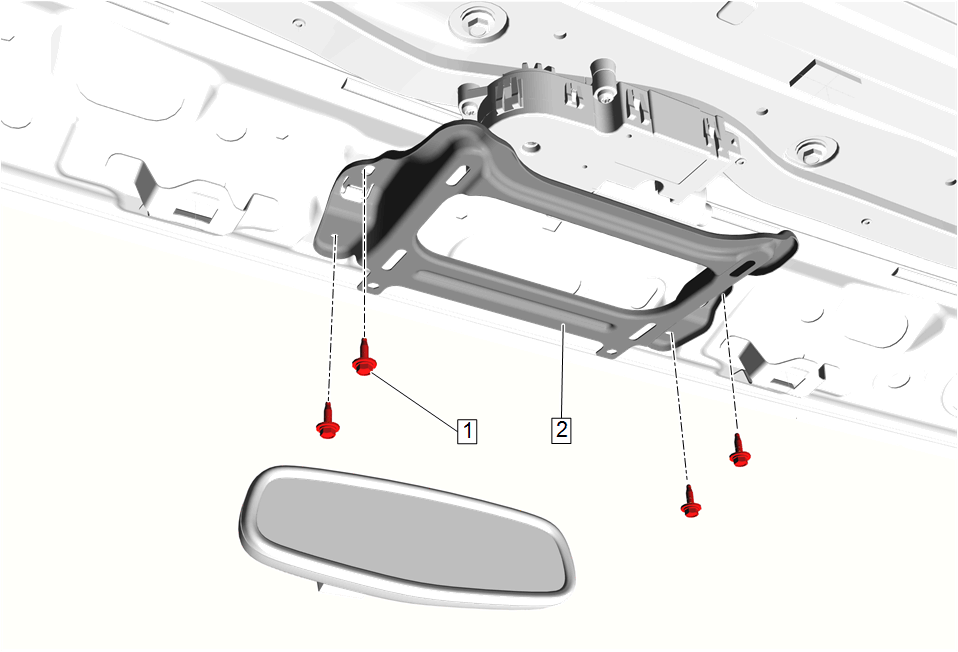

  4. GM5159351

    Roof Console Bracket (2) - Install

  5. Install the 4 roof console bracket bolts (1) until fully seated.
  6. Headlining Trim Panel - Install - Headlining Trim Panel Replacement (Hatchback)Headlining Trim Panel Replacement (Wagon)
