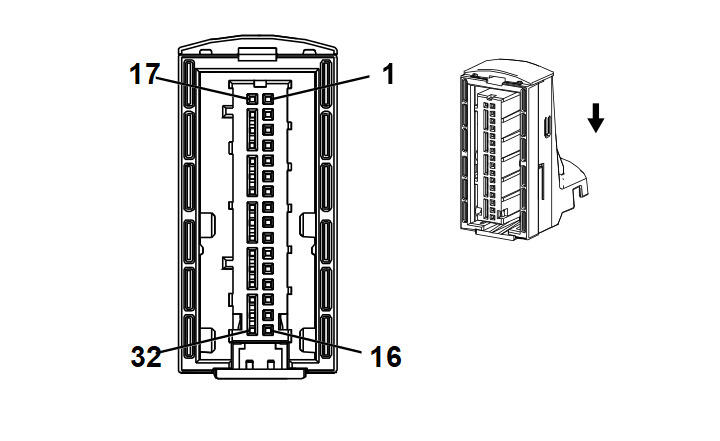

K19 Suspension Control Module (F45)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 24414883
Service Connector: 13576557
Description: 32-Way F 0.64 Micro-Quadlock Series (BU)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575584	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13575736	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
III	13575859	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	RD/VT	1940	Battery Positive Voltage	III	-
2	0.5	BU/BN	1119	Right Rear Damping Servo Control	III	-
3	0.5	BN/GN	1118	Right Rear Damping Servo Control	III	-
4	0.5	BU/GY	1114	Left Rear Damping Servo Control	III	-
5	0.5	VT/GN	1115	Left Rear Damping Servo Control	III	-
6	0.35 0.35	WH/BU WH/BU	5986 5986	Serial Data Communication Enable Serial Data Communication Enable	II I	GNC GNQ
7	0.5	BN/RD	1819	Right Front Wheel Accelerometer 5V Reference	III	-
8	0.5	BK/GN	1105	Right Front Wheel Damping Accelerometer Low Reference	III	-
9	0.5	YE/BN	1103	Left Rear Wheel Damping Accelerometer Signal	III	-
10	0.5	WH	1100	Left Front Wheel Damping Accelerometer Signal	III	-
11	0.5	WH	1106	Right Front Wheel Damping Accelerometer Signal	III	-
12	0.5	YE/RD	1817	Left Front Wheel Accelerometer 5V Reference	III	-
13	0.75	BN	1113	Left Front Damping Servo Control	III	-
14	0.75	BU	1107	Left Front Damping Servo Control	III	-
15	0.75	BK	1116	Right Front Damping Servo Control	III	-
16	0.75	RD	1117	Right Front Damping Servo Control	III	-
17	-	-	-	Not Occupied	-	-
18	0.75	BK/WH	2851	Signal Ground	III	-
19	-	-	-	Not Occupied	-	-
20	0.5	BK/BN	1099	Left Front Wheel Damping Accelerometer Low Reference	III	-
21	0.5	BK/VT	1833	Left Rear Wheel Damping Accelerometer Low Reference	III	-
22	0.35 0.35	BU BU	2500 2500	High Speed GMLAN Serial Data (+) 1 High Speed GMLAN Serial Data (+) 1	I II	UGN -UGN
23	0.5 0.35	BU BU	2500 2500	High Speed GMLAN Serial Data (+) 1 High Speed GMLAN Serial Data (+) 1	III I	-F46 F46+F45-LGX
24	0.35 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) 1 High Speed GMLAN Serial Data (-) 1	I III	(F45+HS-F46-LGX)/(F46+F45-LGX) -F46
25	0.35 0.35	WH WH	2501 2501	High Speed GMLAN Serial Data (-) 1 High Speed GMLAN Serial Data (-) 1	II I	UGN -UGN
26 - 27	-	-	-	Not Occupied	-	-
28	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
29	0.35 0.35	BU/YE BU/YE	6105 6105	High Speed GMLAN Serial Data (+) 2 High Speed GMLAN Serial Data (+) 2	II I	F45 F46
30	0.35 0.35	WH WH	6106 6106	High Speed GMLAN Serial Data (-) 2 High Speed GMLAN Serial Data (-) 2	II I	F45 F46
31	0.35	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
32	0.5	VT/RD	1818	Left Rear Wheel Accelerometer 5V Reference	III	-
