Rearview Driver Information Camera Replacement (Hatchback)

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

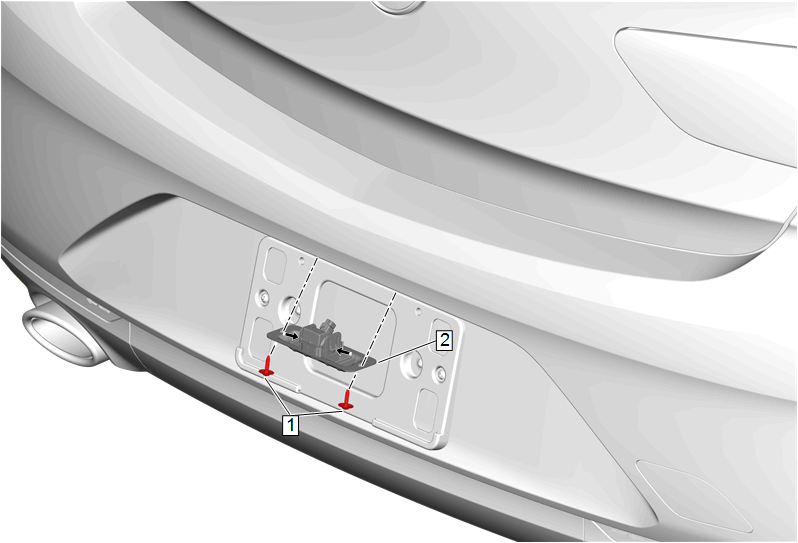

Callout	Component Name
1	Rearview Driver Information Camera Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rearview Driver Information Camera Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Rearview Driver Information Camera Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Rearview Driver Information Camera

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
