E18 Rear Defogger Grid X2 (Hatchback)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

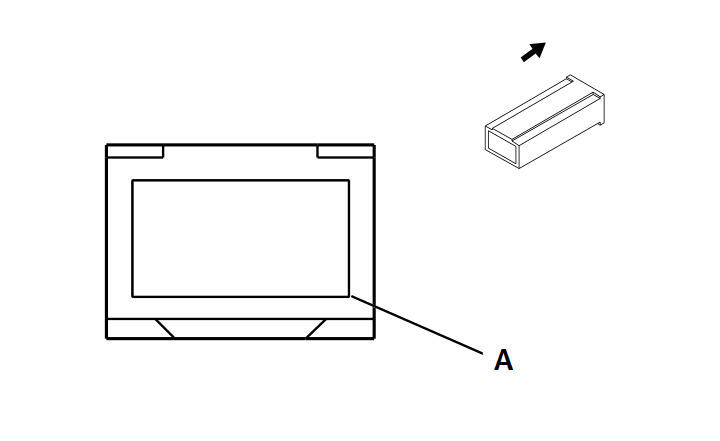

Connector Part Information
- Harness Type: Right Rear Window Defogger Noise Filer
- OEM Connector: 13129191
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 6.3 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
4.0 |
BK |
2350 |
Ground |
I |
- |
