B59L Front Impact Sensor - Left
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

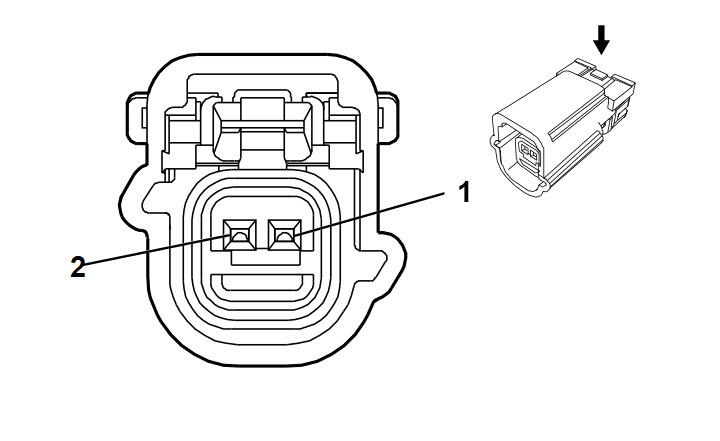

Connector Part Information
- Harness Type: Body
- OEM Connector: 13598828
- Service Connector: 19368289
- Description: 2-Way F 0.64 OCS Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG/YE |
354 |
Left Front Discriminating Sensor Signal |
I |
- |
| 2 |
0.35 |
BK/OG |
5045 |
Left Front Discriminating Sensor Low Reference |
I |
- |
