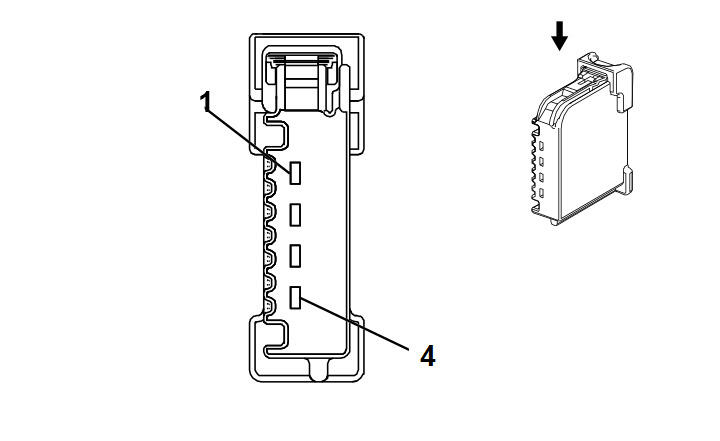

A23C Liftgate Latch Assembly (-TC2)
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 19115646
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
2350 |
Ground |
I |
- |
| 2 |
0.35 |
VT/GY |
1303 |
Lift Gate Ajar Switch Signal 1 |
I |
- |
| 3 |
0.75 |
BU/WH |
6128 |
Rear Closure Unlatch Motor Unlatch Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
