Section 102 (Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IOR)
>>

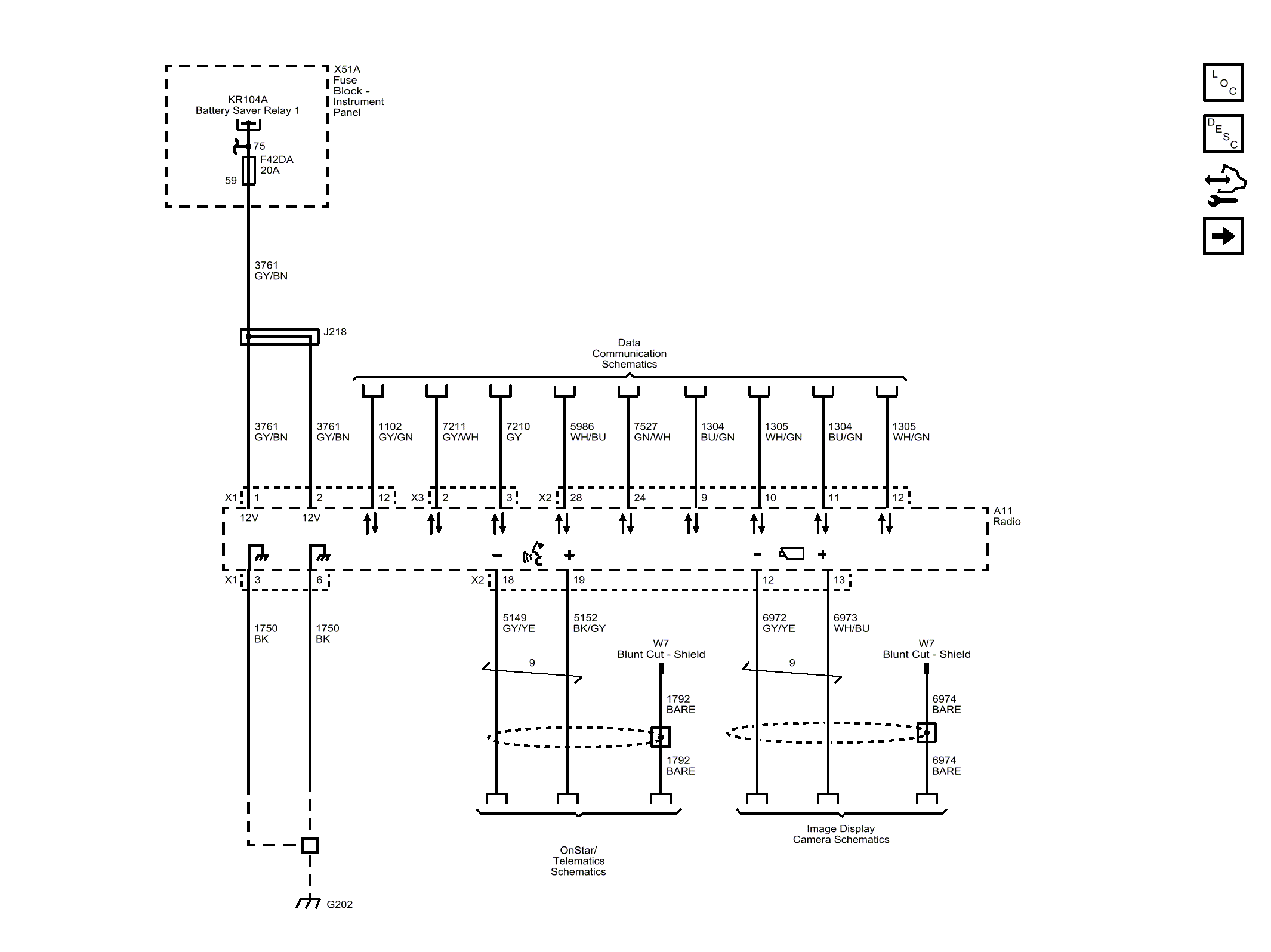

Power, Ground, Serial Data and Subsystem References
Power, Ground, Serial Data and Subsystem References
WARNING:
This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
