Front Seat Adjuster Memory Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

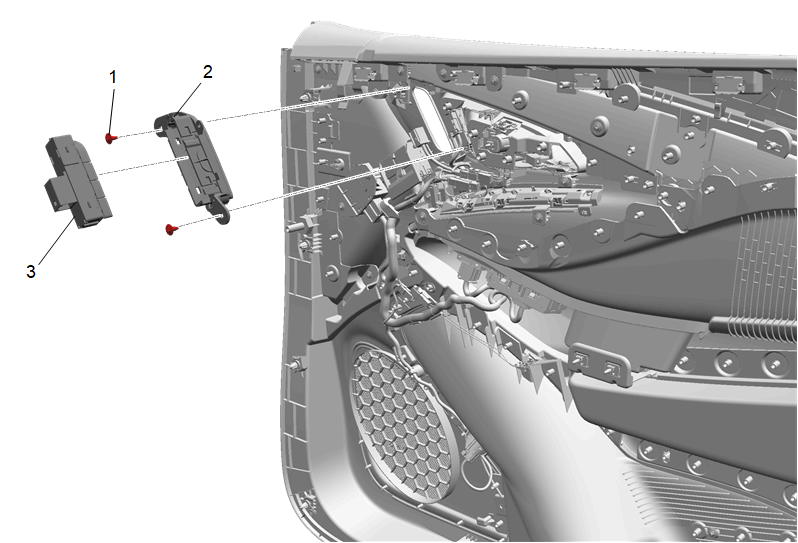

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Front Seat Adjuster Memory Switch Bracket Screw [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Switch Bracket Procedure Disconnect the electrical connector. Remove the switch bracket and the switch from the door trim panel as an assembly.
3	Front Seat Adjuster Memory Switch Procedure Separate the switch from the switch bracket.
