T1 Accessory DC/AC Power Inverter Module X1 (KI6)
 Courtesy of GENERAL MOTORS COMPANY
|

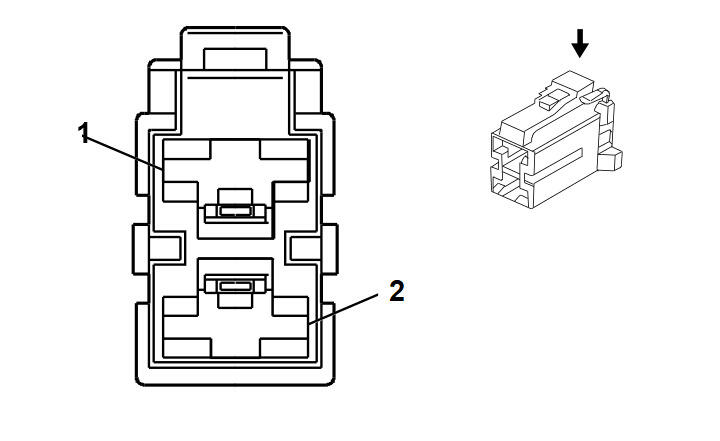

Connector Part Information
- Harness Type: Body
- OEM Connector: 13581072
- Service Connector: 19368303
- Description: 2-Way F L-Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/GN |
2440 |
Secondary Fused Battery Positive Voltage 24 |
I |
- |
| 2 |
4 |
BK |
2550 |
Ground 25 |
I |
- |
