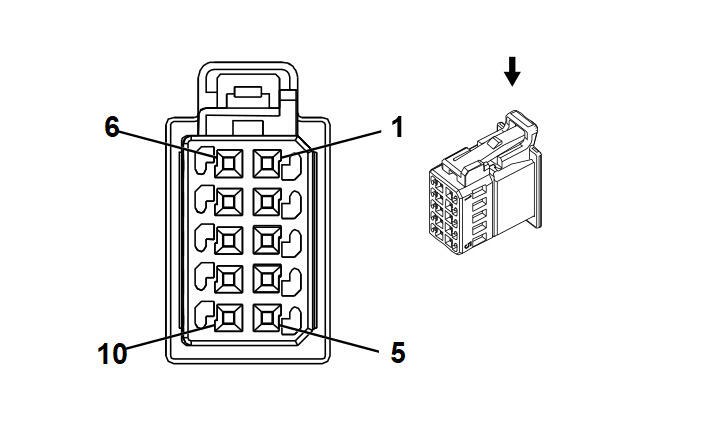

S78 Turn Signal/Multifunction Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13582766
- Service Connector: 19299776
- Description: 10-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575584 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/GN |
663 |
Hazard Warning Switch Left Turn Signal |
I |
- |
| 2 |
0.35 |
VT/BU |
664 |
Hazard Warning Switch Right Turn Signal |
I |
- |
| 3 |
0.35 |
BK |
1650 |
Ground 16 |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
YE/BN |
307 |
Headlamp Switch Flash Signal |
I |
- |
| 7 |
0.35 |
WH/GN |
534 |
High Idle Speed Switch Signal |
I |
- |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
