S48E Multifunction Switch - Center Console
 Courtesy of GENERAL MOTORS COMPANY
|

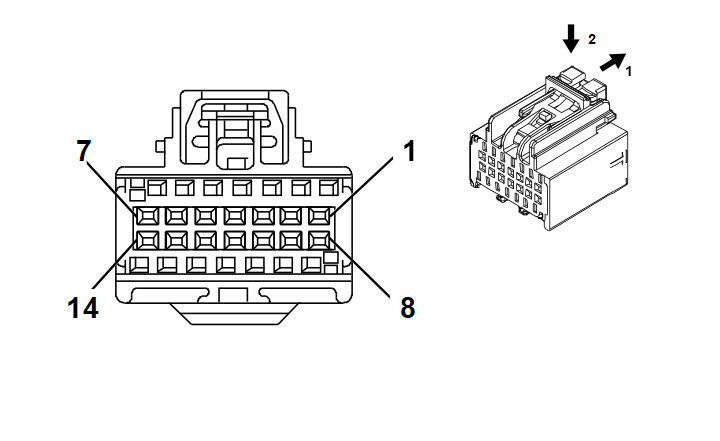

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13593897
- Service Connector: Service by Harness - See Part Catalog
- Description: 14-Way F 0.64 Kaizen Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2250 |
Ground 22 |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
BU/VT |
1788 |
Traction Control Switch Signal 1 |
I |
- |
| 5 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
