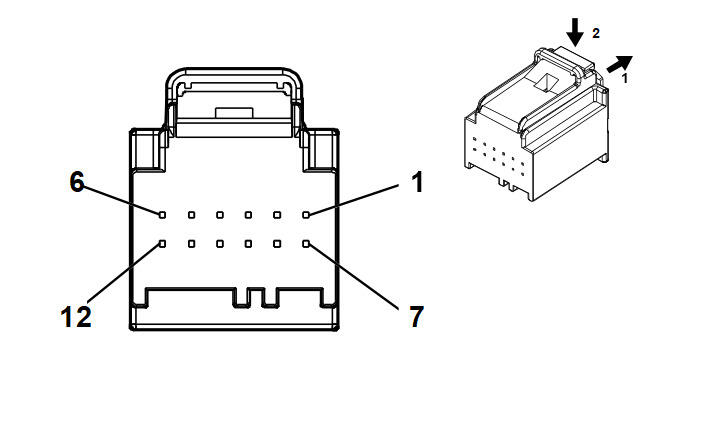

K157 Video Processing Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13525987
- Service Connector: 13525987
- Description: 12-Way F 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| II |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/GN |
2173 |
12 Volt Regulated Supply Voltage 2 |
I |
UVH |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY/GN |
1102 |
Low Speed GMLAN Serial Data 2 |
II |
UVH |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
GY/YE |
6972 |
Rearview Camera Signal [+] |
II |
UVH |
| 7 |
0.35 |
BK |
1950 |
Ground 19 |
II |
UVH |
| 8 |
0.35 |
BK |
1950 |
Ground 19 |
II |
UVH |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
BARE |
6974 |
Rearview Camera Low Reference |
II |
UVH |
| 12 |
0.35 |
WH/BU |
6973 |
Rearview Camera Signal [-] |
II |
UVH |
