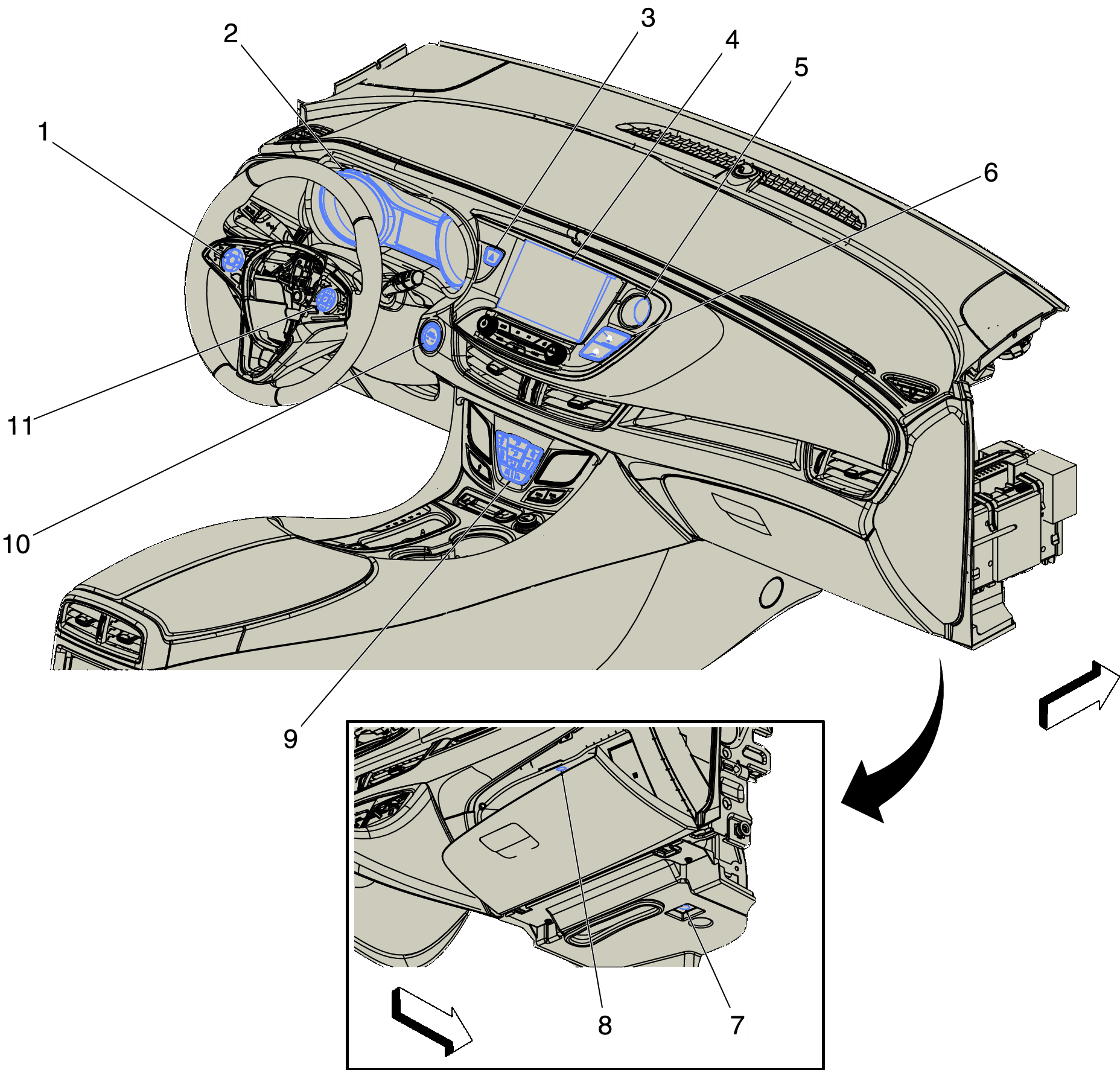

Front of Instrument Panel Components (1 of 2)
Front of Instrument Panel Components (1 of 2)
| Component Name | Callout |
|---|---|
| S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left | 1 |
| P16 Instrument Cluster P16 Instrument Cluster X1 (UV6) , and P16 Instrument Cluster X2 | 2 |
| S26 Hazard Warning Switch S26 Hazard Warning Switch | 3 |
| K48 Infotainment Faceplate Control Module K48 Infotainment Faceplate Control Module X1 , and K48 Infotainment Faceplate Control Module X2 | 4 |
| P6 Clock P6 Clock | 5 |
| S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel | 6 |
| E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right (C9B) | 7 |
| E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp | 8 |
| A26 HVAC Controls A26 HVAC Controls | 9 |
| S38 Ignition Mode Switch S38 Ignition Mode Switch | 10 |
| S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right | 11 |
