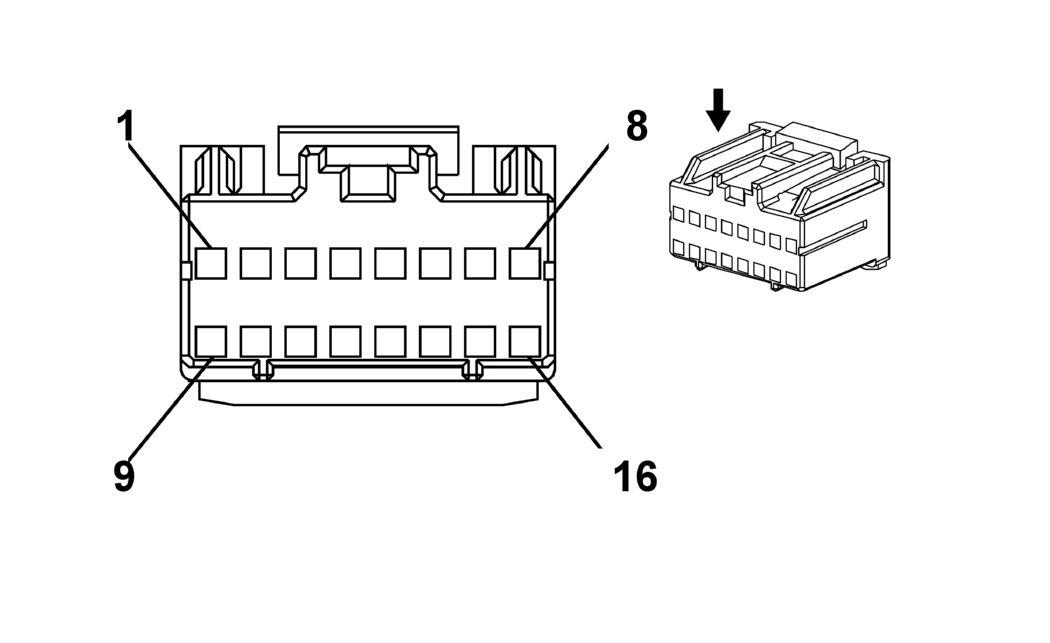

K73 Telematics Communication Interface Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19153138
- Service Connector: 19153138
- Description: 16-Way F 040 Multilock II Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575803 |
J-35616-16 (LT GN) |
J-38125-559 |
15445905 |
Delphi 23 |
J |
J |
| II |
13575804 |
J-35616-16 (LT GN) |
J-38125-559 |
15445905 |
Delphi 23 |
J |
J |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/GN |
1102 |
Low Speed GMLAN Serial Data 2 |
II |
- |
| 2 |
0.35 |
BN/WH |
2517 |
Keypad Red LED Control |
I |
- |
| 3 |
0.35 |
YE/VT |
2516 |
Keypad Green LED Control |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
GN/BK |
2515 |
Keypad Control |
I |
- |
| 7 |
0.5 |
BK |
1750 |
Ground 17 |
II |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
BU/GN |
1304 |
High Speed GMLAN Serial Data [+] 9 |
II |
- |
| 11 |
0.35 |
GN/WH |
2514 |
Keypad Signal |
I |
- |
| 12 |
0.5 |
WH/GN |
1305 |
High Speed GMLAN Serial Data [-] 9 |
II |
- |
| 13 |
0.5 |
BK/VT |
5167 |
Backup Battery Low Reference |
II |
- |
| 14 |
0.5 |
YE/VT |
5235 |
Backup Battery Voltage Reference |
II |
- |
| 15 |
0.5 |
RD/BU |
3940 |
Secondary Fused Battery Positive Voltage 39 |
II |
- |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
