K157 Video Processing Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|

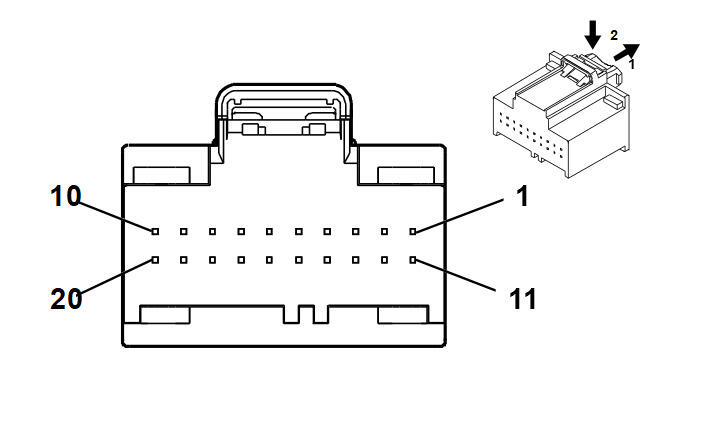

Connector Part Information
- Harness Type: Body
- OEM Connector: 13525990
- Service Connector: 13525990
- Description: 20-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/YE |
6972 |
Rearview Camera Signal [+] |
I |
UVH |
| 2 |
0.35 |
BK/WH |
1351 |
Ground 13 |
I |
UVH |
| 3 |
0.35 |
BK/WH |
1351 |
Ground 13 |
I |
UVH |
| 4 |
0.35 |
GY/YE |
6972 |
Rearview Camera Signal [+] |
I |
UVH |
| 5 |
0.35 |
WH/GN |
2628 |
Left Sideview Camera Video Signal [+] |
I |
UVH |
| 6 |
0.35 |
BK/GN |
4664 |
Left Sideview Camera Feedback Signal |
I |
UVH |
| 7 |
0.35 |
BK/BU |
4667 |
Right Sideview Camera Feedback Signal |
I |
UVH |
| 8 |
0.35 |
WH/BU |
2627 |
Right Sideview Camera Video Signal [+] |
I |
UVH |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
WH/BU |
6973 |
Rearview Camera Signal [-] |
I |
UVH |
| 12 |
0.35 |
GN/YE |
6840 |
Auxiliary Device 2 Switched Voltage |
I |
UVH |
| 13 |
0.35 |
GN/YE |
6840 |
Auxiliary Device 2 Switched Voltage |
I |
UVH |
| 14 |
0.35 |
WH/BU |
6973 |
Rearview Camera Signal [-] |
I |
UVH |
| 15 |
0.35 |
GY/GN |
2625 |
Left Sideview Camera Video Signal [-] |
I |
UVH |
| 16 |
0.35 |
VT/GN |
4663 |
Left Sideview Camera Control |
I |
UVH |
| 17 |
0.35 |
VT/BU |
4666 |
Right Sideview Camera Control |
I |
UVH |
| 18 |
0.35 |
GY/BU |
2626 |
Right Sideview Camera Video Signal [-] |
I |
UVH |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
