Home >> Buick >> 2020 >> Envision Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

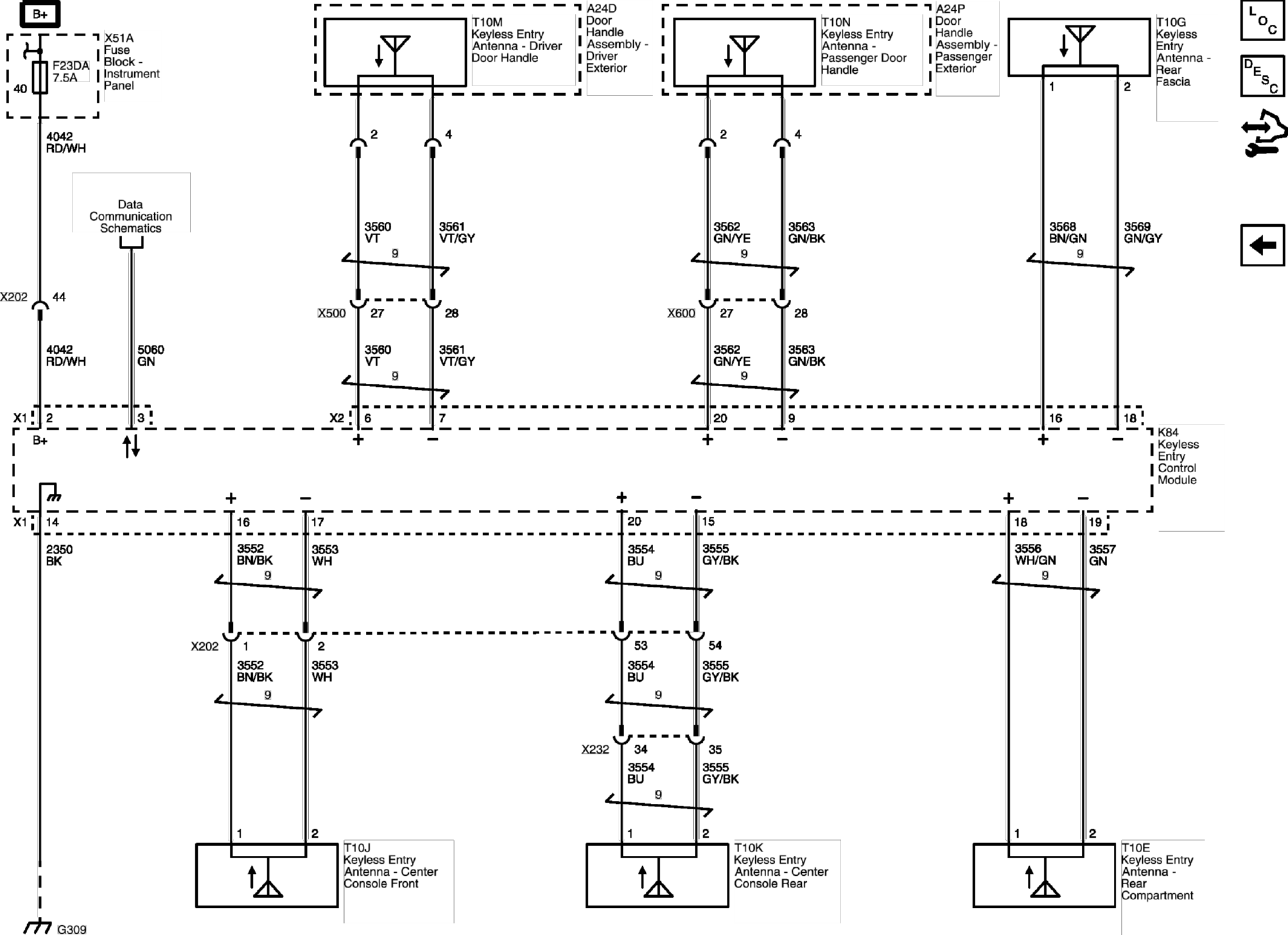

Keyless Entry - Passive and Keyless Start

GM5156412

Courtesy of GENERAL MOTORS COMPANY
