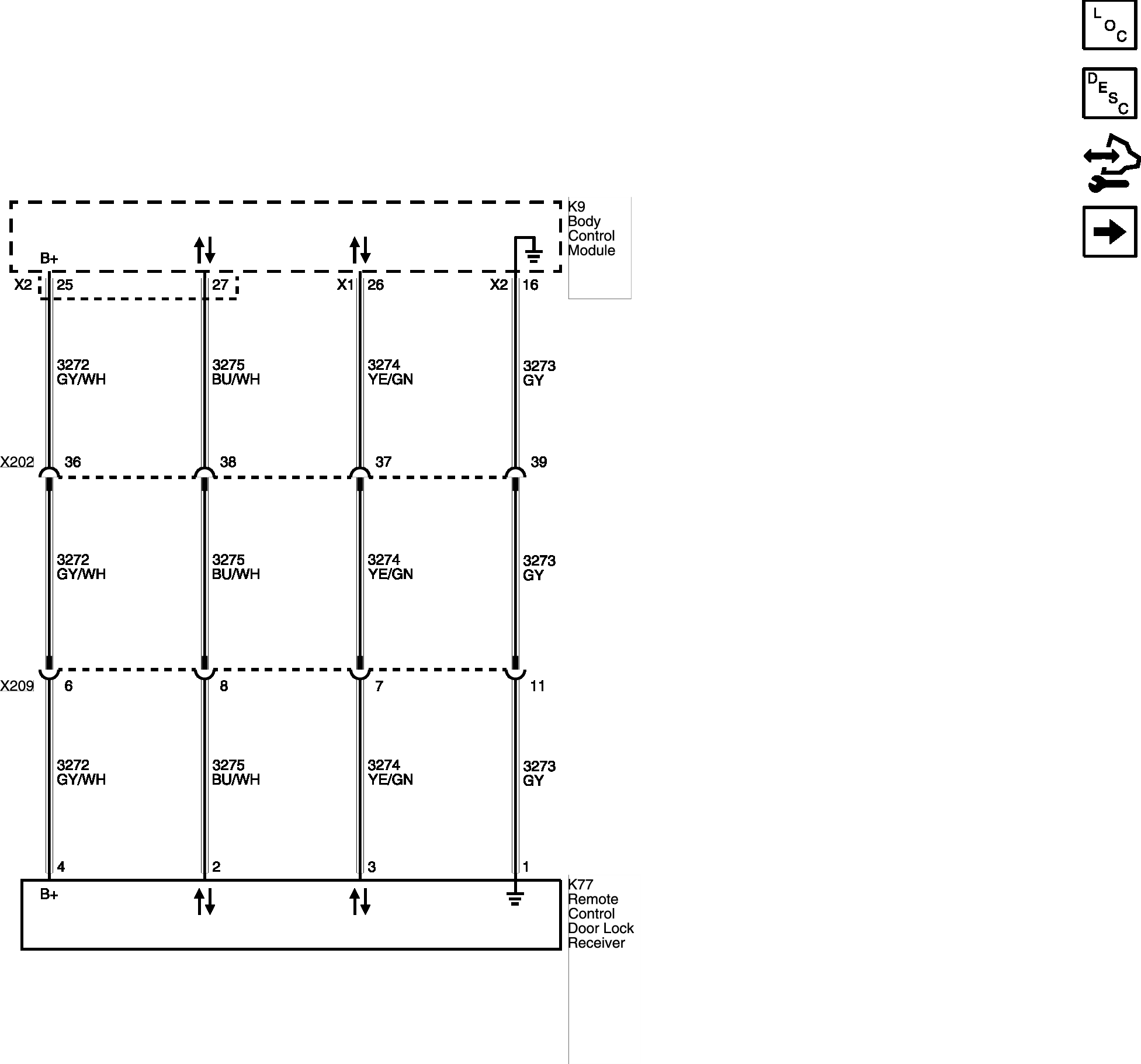

Home >> Buick >> 2020 >> Encore Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics (Buick) >> Keyless Entry (Buick)
