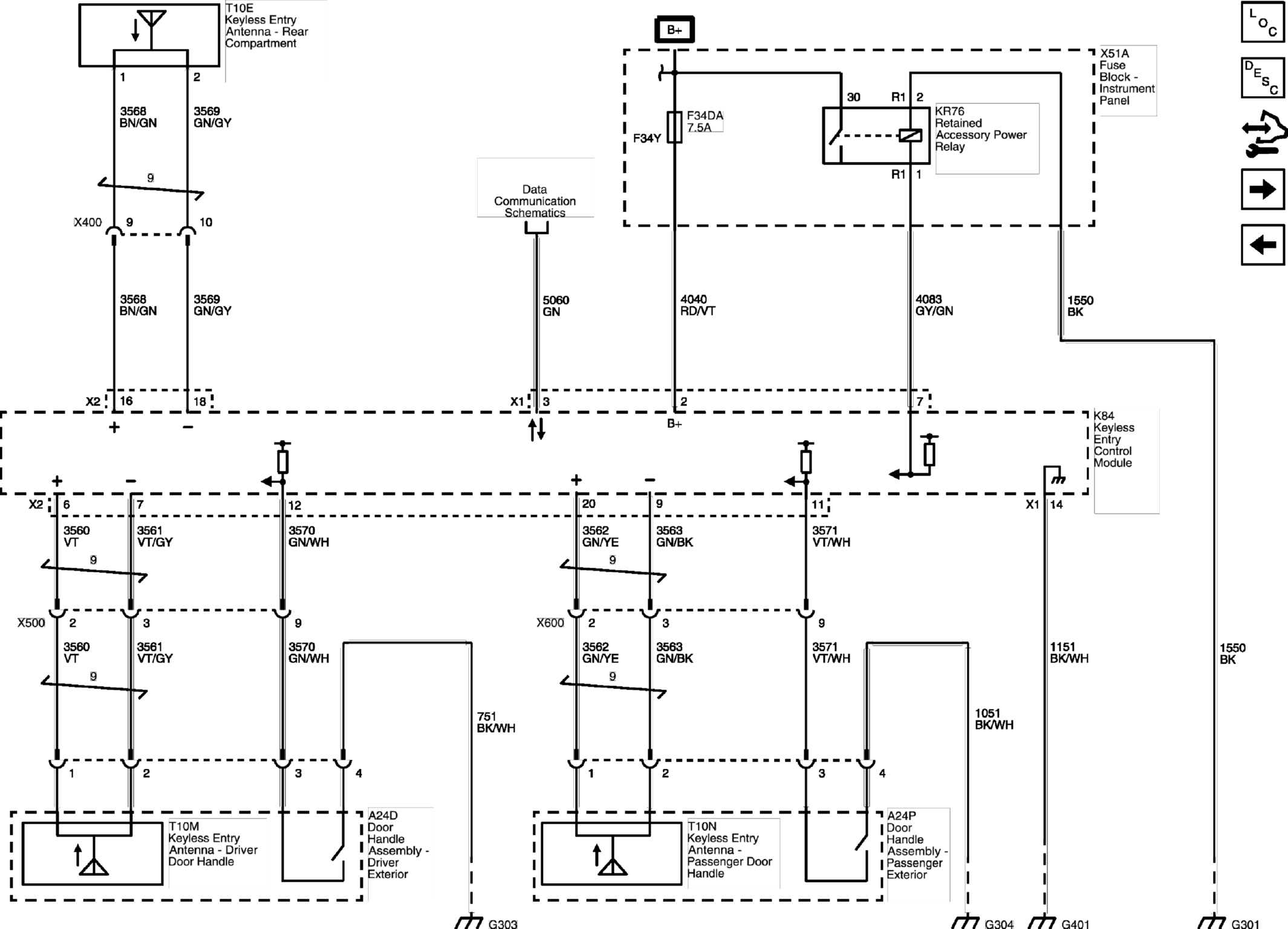

Keyless Entry - Passive Entry and Keyless Start (1 of 2) (Buick)

GM5283020

Courtesy of GENERAL MOTORS COMPANY
