K43 Power Steering Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|

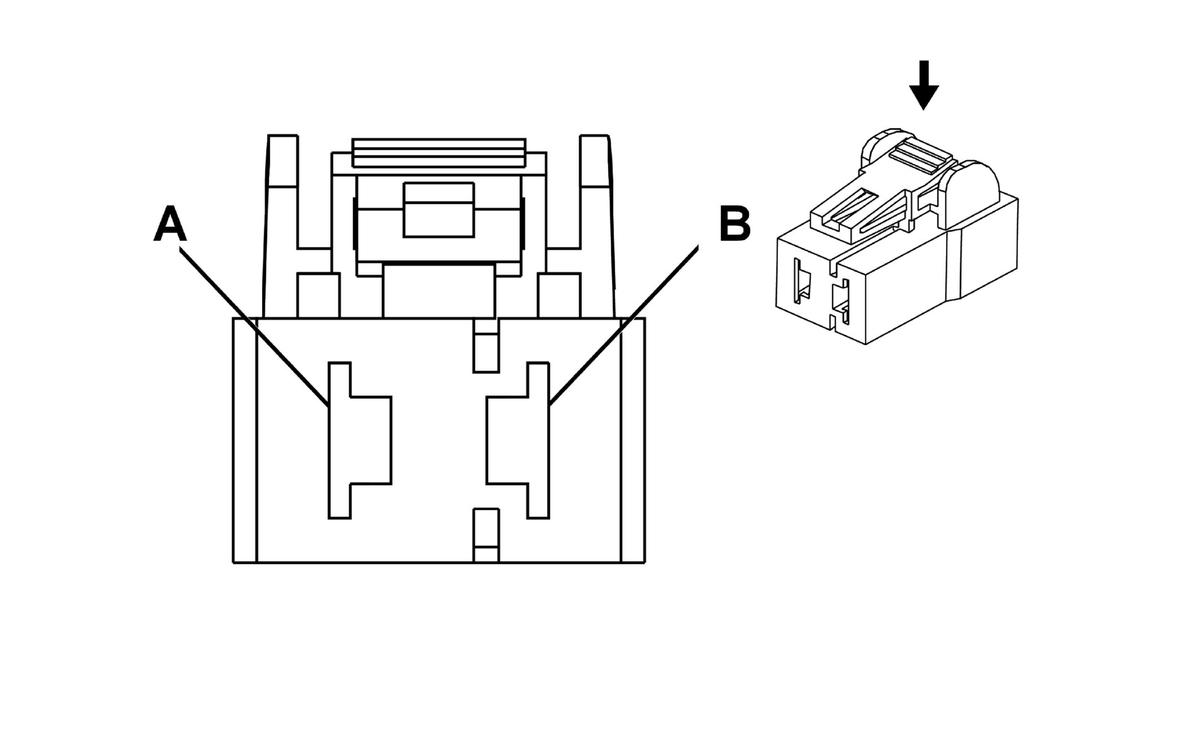

Connector Part Information
- Harness Type: Body
- OEM Connector: 45-40312
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 8.0 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-44 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
8 |
RD/BN |
202 |
Battery Positive Voltage 2 |
I |
- |
| B |
8 |
BK |
650 |
Ground 6 |
I |
- |
