Body & Frame
>>
Body, Cab Control Systems
>>
Vehicle Access System
>>
Description and Operation
>>
Rear Hatch/Gate Description and Operation
>>
Liftgate Release System Components
Liftgate Release System Components
Body control module (BCM)
Liftgate unlatch switch
Liftgate latch assembly
Liftgate unlatch relay

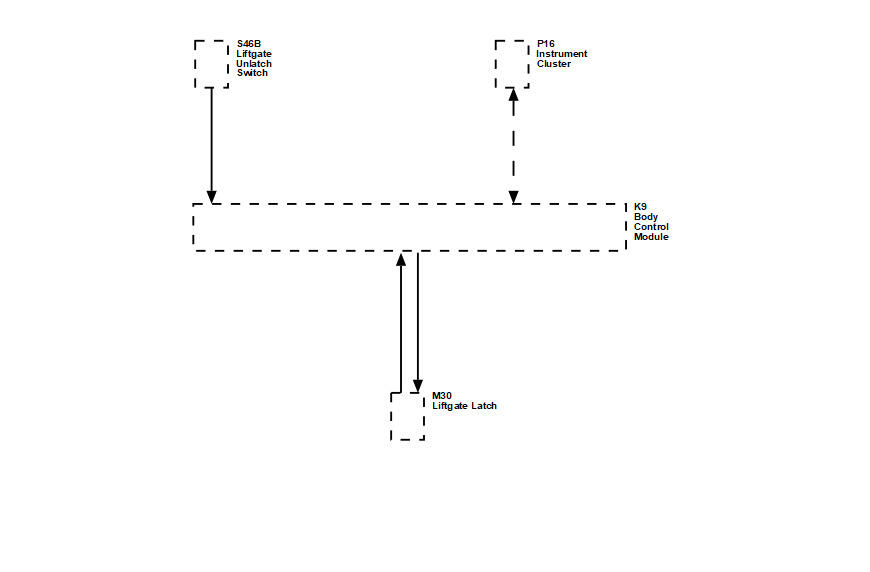

Fig 1: Identifying Liftgate Release System Block Diagram
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
P16
P16 Instrument Cluster
K9
K9 Body Control Module
M30
M30 Liftgate Latch
S46B
S46B Liftgate Unlatch Switch
