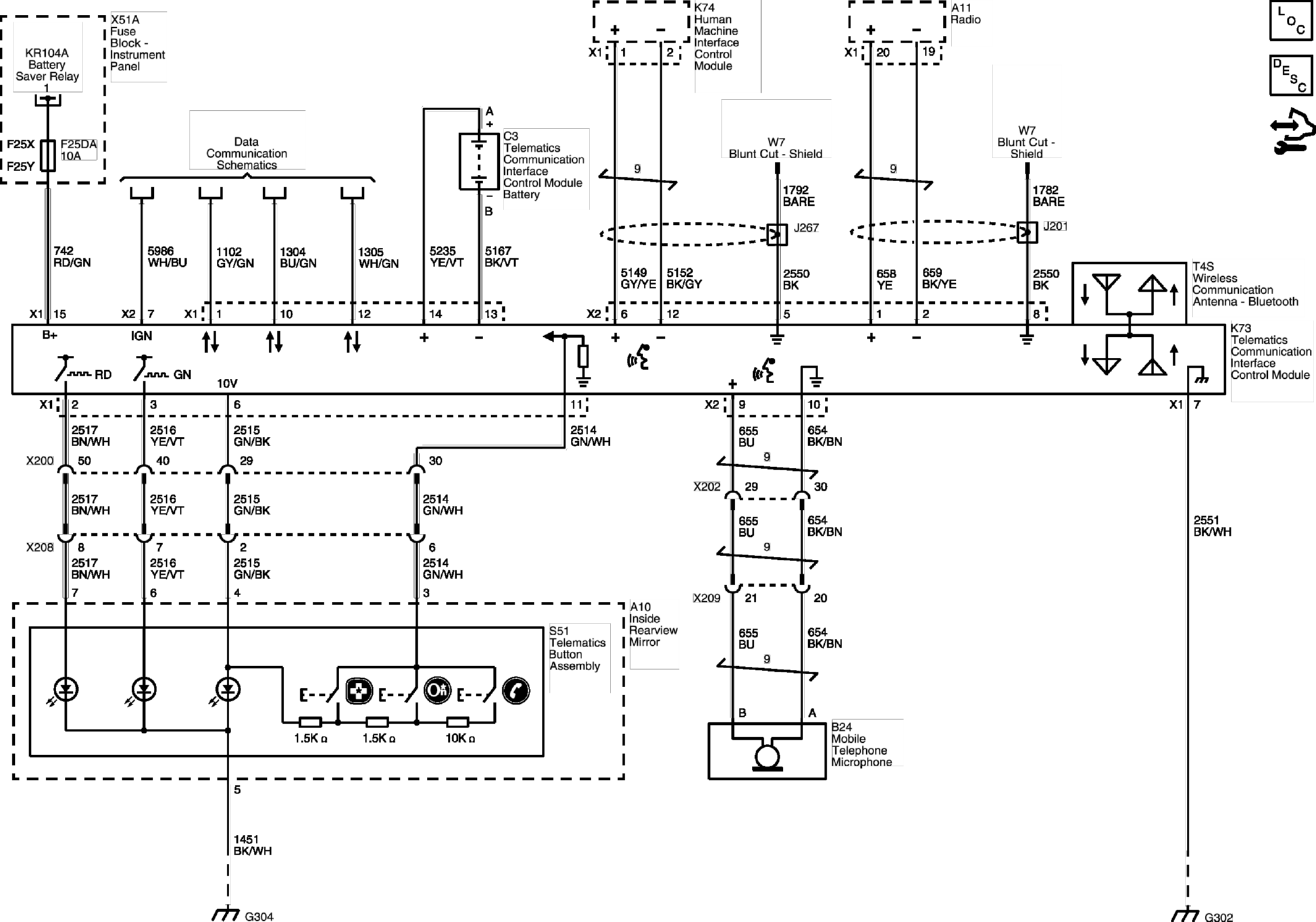

Telematics Communication Interface Control Module (Buick)

GM5282410Courtesy of GENERAL MOTORS COMPANY
