Chassis Control Module Replacement

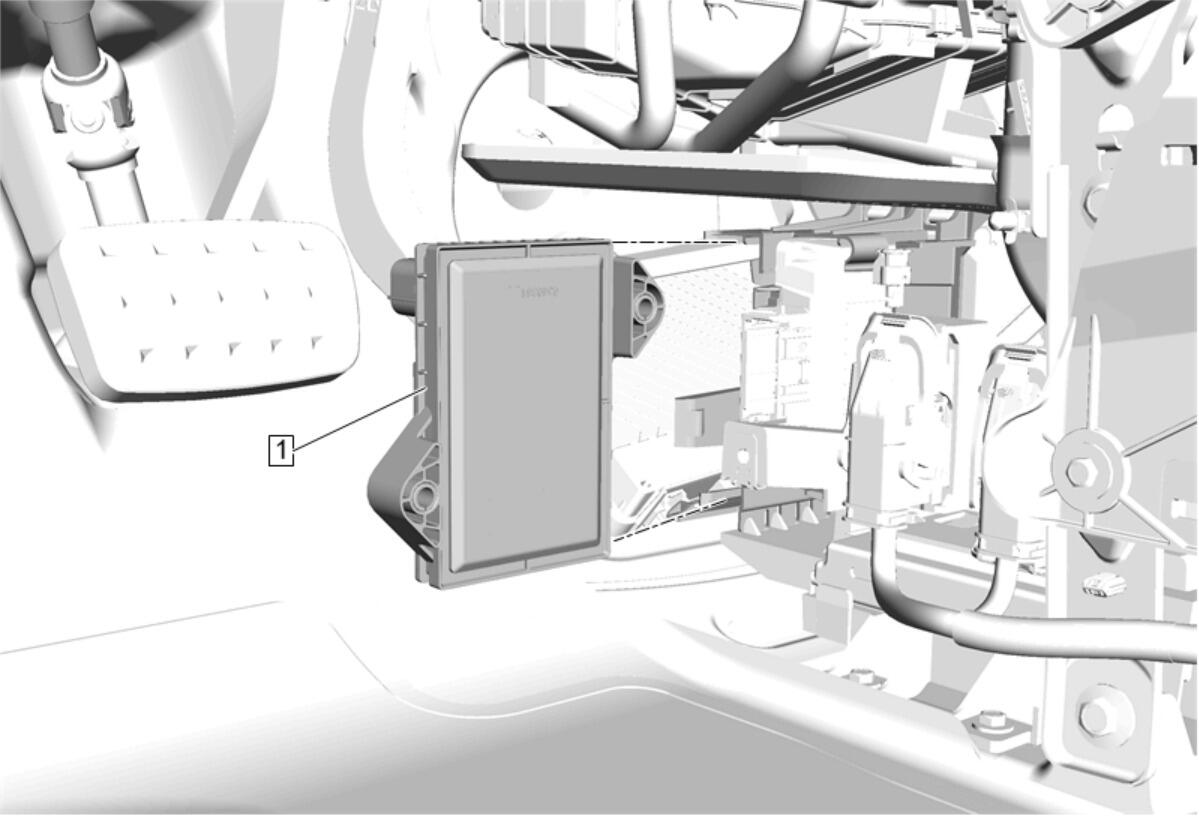

GM5312763Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Left Side
1 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Release retaining tabs to remove module from bracket.
  3. If replacing, reprogram the module. Control Module References
